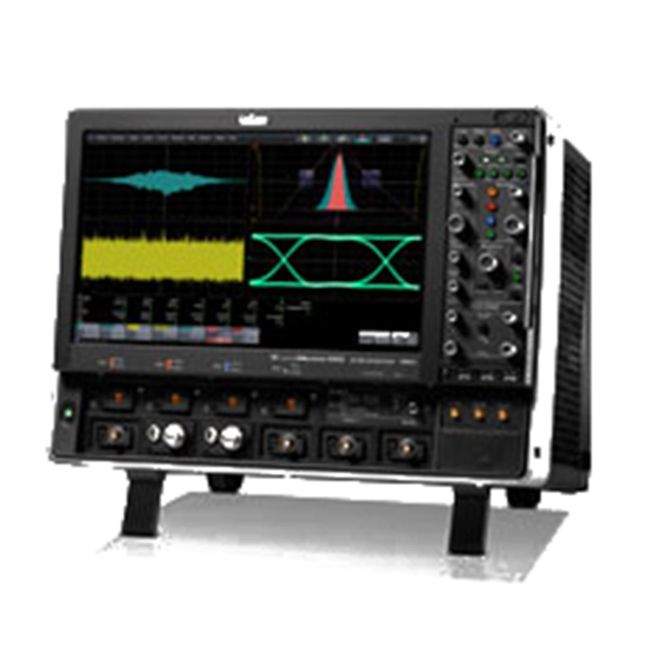

Teledyne LeCroy SDA-813ZI-B
4 Ch 13 GHz Serial Data Analyzer
8 GHz Bandwidth
40 GS/s Sample Rate
4 Analog Channels Number of Channels
256 Mpts/Ch (standard), up to 512 Mpts/Ch (optional) Memory Depth
8-bit (up to 11-bit with enhanced resolution) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Sample Rate | 40 GS/s |
| Number of Channels | 4 Analog Channels |
| Memory Depth | 256 Mpts/Ch (standard), up to 512 Mpts/Ch (optional) |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Rise Time | 56 ps |
| Input Impedance | 50 Ω |
| Display | 15.3-inch color LCD touchscreen |
| Serial Data Analysis | Integrated Serial Data Analyzer with SDAIII CompleteLinQ software for eye diagram, jitter, and noise analysis |
| Connectivity | USB, Ethernet (LAN), GPIB (optional) |
Teledyne LeCroy SDA-813ZI-B Options:
- SDA-813ZI-B - SDA8Zi-STD - 64 Mpts/Ch Standard Memory for SDA 8 Zi-B, Includes 8 GB of RAM
- SDA-813ZI-B - SDA8Zi-L-128 - 128 Mpts/Ch Memory Option for SDA 8 Zi-B
- SDA-813ZI-B - SDA8Zi-VL-256 - 256 Mpts/Ch Memory Option for SDA 8 Zi-B
- SDA-813ZI-B - WM8Zi-8-UPG-16GBRAM - 8 GB to 16 GB CPU RAM Option
- SDA-813ZI-B - WM8Zi-8-UPG-32GBRAM - 8 GB to 32 GB CPU RAM Option
- SDA-813ZI-B - GPIB-4 - GPIB Option for Teledyne LeCroy Oscilloscope, Half-height Card
- SDA-813ZI-B - SDA8Zi-UPG-14GBIT-80b-SYMBOL-TD - 80-bit NRZ, 8b/10b, and 64b/66b 14.1 Gbps Serial Trigger upgrade option. Also includes 8b/10b and 64b/66b decode.
- SDA-813ZI-B - SDA8Zi-CompleteLinQ - Complete Multi-Lane SDA LinQ Framework, including Eye, Jitter, Noise, Crosstalk Measurements, with EyeDrII and VirtualProbe
- SDA-813ZI-B - SDA8Zi-CrossLinQ - Multi-Lane Serial Data Analysis LinQ Framework, Eye, Jitter, Noise and Crosstalk Measurements
- SDA-813ZI-B - SDA8Zi-LinQ - Multi-Lane Serial Data Analysis LinQ Framework, Eye and Jitter Measurements
- SDA-813ZI-B - SDA8Zi-Crosstalk - Single-Lane Serial Data Analysis Framework, Eye, Jitter, Noise and Crosstalk Measurements
- SDA-813ZI-B - WM8Zi-SDAIII - Single-Lane Serial Data Analysis Framework, Eye and Jitter Measurements
- SDA-813ZI-B - WM8Zi-PAM4 - PAM4 Signal Analysis
- SDA-813ZI-B - WM8Zi-VIRTUALPROBE - Advanced De-embedding, Emulation and Virtual Probing Toolkit
- SDA-813ZI-B - WM8Zi-EYEDRII - Signal Integrity Toolkit - Channel & Fixture De-embedding/Emulation, Tx/Rx Equalization
- SDA-813ZI-B - WM8Zi-EYEDRII-VP - Bundle - EyeDrII and VirtualProbe Toolkits
- SDA-813ZI-B - WM8Zi-CBL-DE-EMBED - Cable De-embed Option
- SDA-813ZI-B - WM8Zi-VECTORLINQ - VectorLinQ – Flexible vector signal analysis for electrical signals (RF and baseband I-Q)
- SDA-813ZI-B - WM8Zi-OPTICAL-LINQ - Optical-LinQ – Coherent optical modulation analysis
- SDA-813ZI-B - WM8Zi-JITKIT - Clock and Clock-Data Timing Jitter Analysis Package
- SDA-813ZI-B - WM8Zi-SPECTRUM - Spectrum Analyzer Mode
- SDA-813ZI-B - WM8ZI-DDR2-TOOLKIT - DDR2 and LPDDR2 Debug Toolkit
- SDA-813ZI-B - WM8ZI-DDR3-TOOLKIT - DDR3, DDR3L, LPDDR3, DDR2, and LPDDR2 Debug Toolkit
- SDA-813ZI-B - WM8ZI-DDR4-TOOLKIT - DDR4, DDR3, DDR3L, LPDDR3, DDR2, and LPDDR2 Debug Toolkit
- SDA-813ZI-B - WM8ZI-UPG-DDR3-TOOLKIT - DDR3, DDR3L, LPDDR3, DDR2, and LPDDR2 Debug Toolkit Upgrade
- SDA-813ZI-B - WM8ZI-UPG-DDR4-TOOLKIT - DDR4, DDR3, DDR3L, LPDDR3, DDR2, and LPDDR2 Debug Toolkit Upgrade
- SDA-813ZI-B - QPHY-10GBase-KR - QualiPHY Enabled 10GBase-KR Software Option
- SDA-813ZI-B - QPHY-10GBASE-T - QualiPHY Enabled 10GBase-T Software Option
- SDA-813ZI-B - QPHY-BroadR-Reach - QualiPHY Enabled BroadR-Reach Software Option
- SDA-813ZI-B - QPHY-DDR2 - QualiPHY Enabled DDR2 Software Option
- SDA-813ZI-B - QPHY-DDR3 - QualiPHY Enabled DDR3 Software Option
- SDA-813ZI-B - QPHY-DDR4 - QualiPHY Enabled DDR4 Software Option
- SDA-813ZI-B - QPHY-DisplayPort - QualiPHY Enabled DisplayPort Software Option
- SDA-813ZI-B - QPHY-eDP - QualiPHY Enabled Embedded DisplayPort Software Option
- SDA-813ZI-B - QPHY-ENET - QualiPHY Enabled Ethernet 10/100/1000BT Software Option
- SDA-813ZI-B - QPHY-HDMI2 - QualiPHY Enabled HDMI 1.4 and HDMI 2 Software Option
- SDA-813ZI-B - QPHY-LPDDR2 - QualiPHY Enabled LPDDR2 Software Option
- SDA-813ZI-B - QPHY-MIPI-DPHY - QualiPHY Enabled MIPI D-PHY Software Option
- SDA-813ZI-B - QPHY-MIPI-MPHY - QualiPHY Enabled MIPI M-PHY Software Option
- SDA-813ZI-B - QPHY-MOST50 - QualiPHY Enabled MOST50 ePHY Software Option
- SDA-813ZI-B - QPHY-MOST150 - QualiPHY Enabled MOST150 oPHY Software Option
- SDA-813ZI-B - QPHY-PCIe3 - QualiPHY Enabled PCIe 3.0 Software Option
- SDA-813ZI-B - QPHY-PCIe - QualiPHY Enabled PCIe Gen1 Software Option
- SDA-813ZI-B - QPHY-SATA-TSG-RSG - QualiPHY Enabled SATA Software Option
- SDA-813ZI-B - QPHY-SAS2 - QualiPHY Enabled SAS-2 Software Option
- SDA-813ZI-B - QPHY-SAS3 - QualiPHY Enabled SAS-3 Software Option
- SDA-813ZI-B - QPHY-SFI - QualiPHY Enabled SFI Software Option
- SDA-813ZI-B - QPHY-USB - QualiPHY Enabled USB 2.0 Software Option
- SDA-813ZI-B - QPHY-USB3-Tx-Rx - QualiPHY Enabled USB 3.0 Transmitter/Receiver Compliance Software Option
- SDA-813ZI-B - QPHY-USB3.1-Tx-Rx - QualiPHY Enabled USB 3.1 Transmitter/Receiver Compliance Software Option
- SDA-813ZI-B - HDA125-18-LBUS - 12.5 GS/s High-speed Digital Analyzer with 18ch QuickLink leadset and LBUS connection
- SDA-813ZI-B - HDA125-09-LBUS - 12.5 GS/s High-speed Digital Analyzer with 9ch QuickLink leadset and LBUS connection
- SDA-813ZI-B - MS-500 - 500 MHz, 2 GS/s, 18 Ch, 50 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-813ZI-B - MS-500-36 - 250 MHz, 1 GS/s, 36 Ch, 25 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-813ZI-B - MS-250 - 250 MHz, 1 GS/s, 18 Ch, 10 Mpts/Ch Mixed Signal Oscilloscope Option
- SDA-813ZI-B - LSIB-1 - High-speed PCIe Gen1 x4 Digitizer Output
- SDA-813ZI-B - WM8Zi-DFP2 - Digital Filter Software Package
- SDA-813ZI-B - WM8Zi-SDM - Serial Data Mask Software Package
- SDA-813ZI-B - WM8Zi-PWR - Power Analysis Option
- SDA-813ZI-B - WM8Zi-EMC - EMC Pulse Parameter Software Package
| Model | SDA-813ZI-B |
|---|
The Teledyne LeCroy SDA-813Zi-B is a powerful digital oscilloscope designed for R&D and QA applications, offering a 13 GHz bandwidth with advanced jitter analysis modules. It integrates enhanced protocol decode libraries for precise validation and includes deeper memory with 512 Mpts per channel for extended signal capture. USB 3.1 and DisplayPort test capabilities further expand its versatility, making it ideal for real-time debugging of complex high-speed signals.
With advanced acquisition depth and real-time signal behavior analysis, this oscilloscope provides engineers with comprehensive tools for protocol validation, compliance testing, and system-level debugging in demanding environments.
Testwall can supply the used Teledyne LeCroy SDA-813Zi-B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy SDA-813Zi-B.
