Keysight (Agilent) 54658A
| Attribute | Value |
|---|---|
| Module Type | Acquisition/Measurement Module |
| Compatible Series | Keysight 54600 Series Oscilloscopes |
| Number of Channels | 2 Analog Channels |
| Bandwidth | 500 MHz |
| Sample Rate | 20 MSa/s |
| Memory Depth | 32 KB per Channel |
| Interface | RS-232 and Parallel (Centronics) Interface |
| Measurement Functions | Automated Measurements including Frequency, Period, Amplitude, Rise Time, and Duty Cycle |
| Power Requirements | Powered via Host Oscilloscope (No External Power Required) |
| Form Factor | Plug-In Module for 54600 Series Mainframe |
Keysight Technologies 54658A Options:
- 54658A - 003 - Shielding Option for use in severe environments or with sensitive devices under test – shields both ways (in and out): RS-03 Magnetic interface shielding added to CRT, and RE-02 display shield added to CRT to reduce radiated interference
- 54658A - 1CM - Rackmount kit (same as 1186A)
- 54658A - A6J - ANSI/NSCL Z540 calibration with test data (replaces 1BP)
- 54658A - R-50C-011-3 - 3-years of return-to-Agilent inclusive calibration service
- 54658A - R-50C-013-3 - 3-years of return-to-Agilent inclusive plus calibration service
- 54658A - R-50C-011-5 - 5-years of return-to-Agilent inclusive calibration service
- 54658A - R-50C-013-5 - 5-years of return-to-Agilent inclusive plus calibration service
- 54658A - R-51B-001-3C - 1-year return-to-Agilent warranty, extended to 3-years
- 54658A - R-51B-001-5C - 1-year return-to-Agilent warranty, extended to 5-years
- 54658A - ABA - Manual Option: English
- 54658A - ABJ - Manual Option: Japanese
- 54658A - AB2 - Manual Option: Simplified Chinese
| Model | 54658A |
|---|

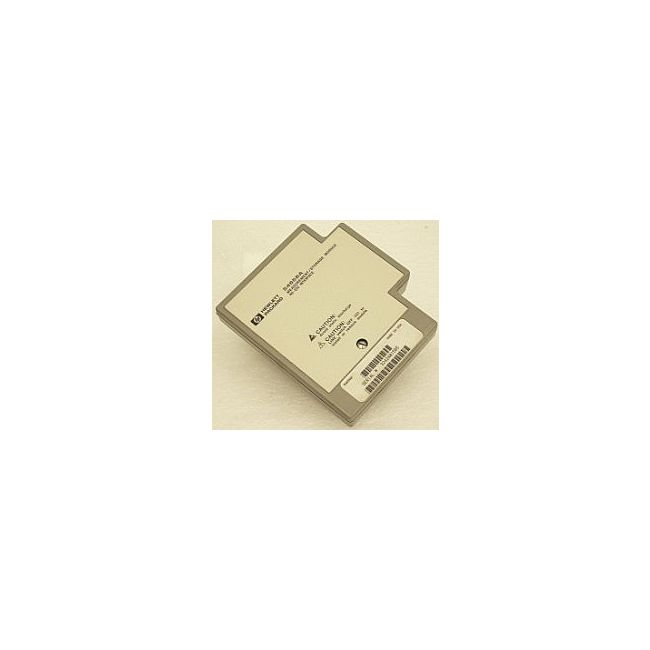

The Keysight (Agilent) 54658A Measurement/Storage Module enhances HP 54600–Series oscilloscopes with advanced RS-232 interface connectivity, allowing for reliable data transfer and control. It offers three voltage and two time automatic measurements, waveform math functions like FFT, and cursor measurement enhancements. Additional features include time/date tagging, hardcopy output, and 64K of compressed trace memory.
This module enables unattended waveform monitoring using mask templates, supports user-defined thresholds, and adds sources for math functions. Ideal for extended analysis, it ensures precise documentation and waveform storage.
Testwall can supply the used Keysight (Agilent) 54658A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54658A.
