Tektronix A6902B
| Attribute | Value |
|---|---|
| Function | Isolation Amplifier |
| Bandwidth | DC to 100 MHz |
| Isolation Voltage | Up to 1000V RMS (CAT II) |
| Input Impedance | 1 MΩ |
| Gain Range | 1x, 2x, 5x, 10x, 20x, 50x, 100x |
| Input Voltage Range | ±400V peak |
| Output Connector | BNC |
| Power Supply | Powered via Tektronix oscilloscope probe power connector |
| Compatible Instruments | Tektronix oscilloscopes with probe power output |
| Operating Temperature | 0°C to +50°C |
| Model | A6902B |
|---|

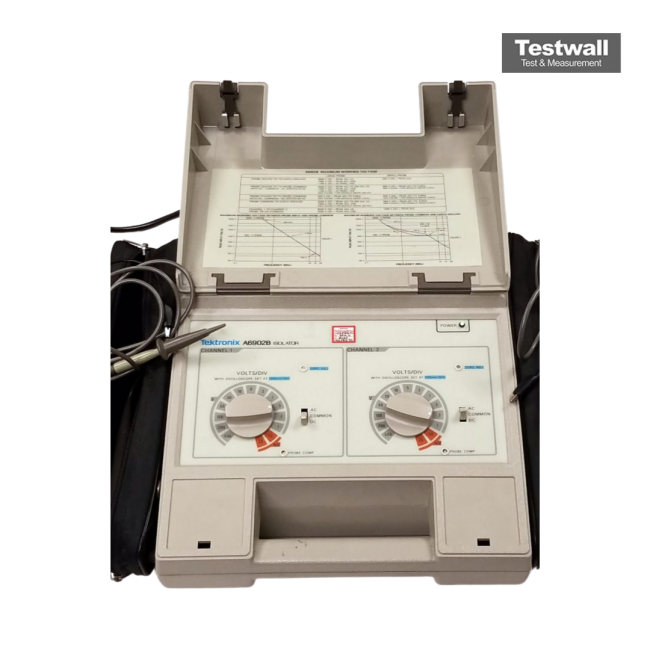

The Tektronix A6902B is a two-channel isolator that replaces an oscilloscope's vertical amplifier, enabling safe floating measurements up to ±3000 V (dc + peak ac). It offers a DC to 20 MHz bandwidth and features isolated inputs compliant with UL1244, IEC 348, and CSA standards.
Designed for high-voltage environments, both channels can operate simultaneously on different circuits or voltage levels, offering flexibility and precision in challenging measurement scenarios.
Testwall can supply the used Tektronix A6902B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix A6902B.
