Keysight (Agilent) 54750A
| Attribute | Value |
|---|---|
| Bandwidth | 50 GHz |
| Sample Rate | Up to 20 GSa/s |
| Number of Channels | 2 (expandable to 4 with plug-in modules) |
| Timebase Range | 20 ps/div to 200 ms/div |
| Vertical Resolution | 8-bit (up to 12-bit with averaging) |
| Input Impedance | 50 Ohms |
| Maximum Input Voltage | ±2 V (DC + peak AC) |
| Display | 8.4-inch color CRT display |
| Interface/Connectivity | GPIB (IEEE-488), RS-232 |
| Trigger Sensitivity | 0.5 div from DC to full bandwidth |
| Model | 54750A |
|---|

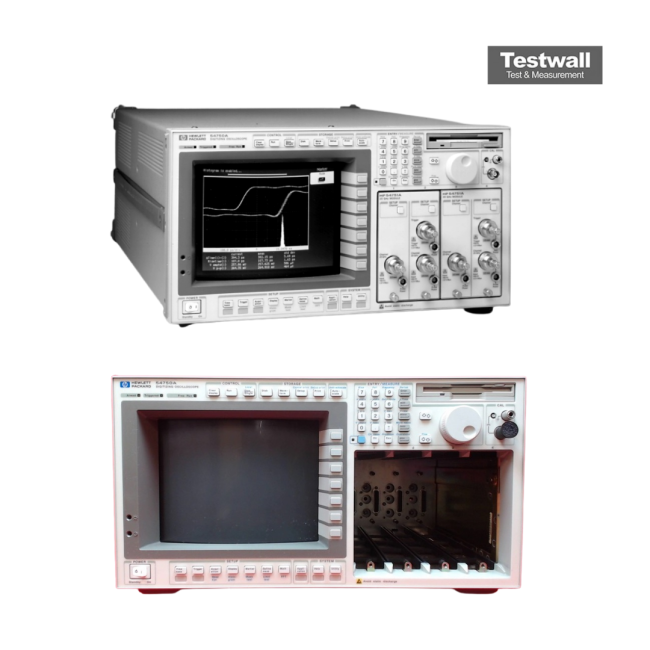

The Keysight (Agilent) 54750A is a modular wide-bandwidth sampling oscilloscope system, supporting up to four high-speed electrical channels and TDR/TDT measurements. It offers 20 GHz or 50 GHz bandwidth options with ultra-low noise levels for precise signal analysis, even on low-level, high-frequency signals.
This system delivers exceptional timebase accuracy, resolution, and stability, enabling detailed jitter characterization in advanced electronic testing environments. Its expandable architecture supports evolving testing needs efficiently.
Testwall can supply the used Keysight (Agilent) 54750A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54750A.
