Keysight (Agilent) 54846B
4 Channel 2.25GHz 8GS/s Infiniium Scope
2.25 GHz Bandwidth
4 Analog Channels Number of Channels
8 GSa/s (single-channel), 4 GSa/s (all channels) Sample Rate
64 Mpts per channel Memory Depth
8-bit (up to 12-bit with averaging) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 2.25 GHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 8 GSa/s (single-channel), 4 GSa/s (all channels) |
| Memory Depth | 64 Mpts per channel |
| Vertical Resolution | 8-bit (up to 12-bit with averaging) |
| Vertical Sensitivity | 1 mV/div to 1 V/div |
| Timebase Range | 5 ps/div to 20 s/div |
| Trigger Types | Edge, Glitch, Pattern, TV, Delay, Duration, Sequence, Violation |
| Display | 15-inch XGA color display (1024 x 768 resolution) |
| Operating System / Interface | Windows XP Embedded, GPIB, LAN, USB connectivity |
| Model | 54846B |
|---|

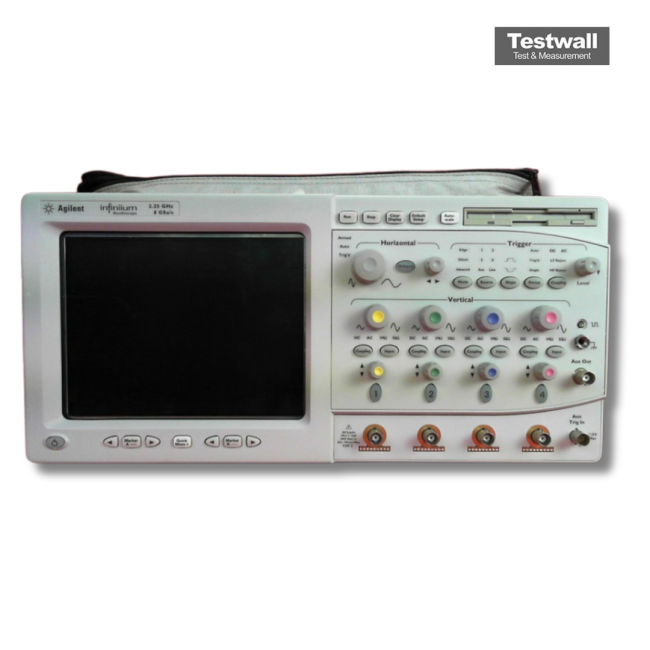

The Keysight (Agilent) 54846B Infiniium Oscilloscope delivers top-tier performance with 4 channels, 2.25 GHz bandwidth, and up to 8 GSa/s sample rate, designed for capturing high-speed digital and RF signals with precision. Its analog-style front panel combined with a Windows-based GUI provides intuitive operation. Key features include time correlation with 16700 logic analyzers, USB 2.0 test support for low/full/high-speed devices, communications mask testing, and voice control for hands-free usage.
Additional tools such as web-enabled remote access and email on trigger simplify remote monitoring and data collection. Passive probes must be ordered separately for system integration.
Testwall can supply the used Keysight (Agilent) 54846B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54846B.
