Keysight (Agilent)

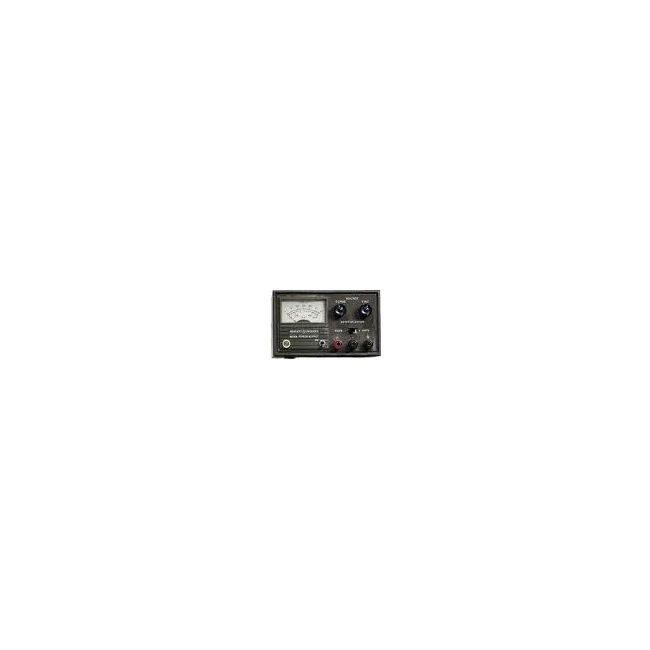

Keysight (Agilent) 6215A
DC Power Supply 25V 4A
0 to 50 V Output Voltage Range
0 to 0.5 A Output Current Range
25 W Maximum Output Power
0.01% + 2 mV Load Regulation (Voltage)
0.01% + 250 µA Load Regulation (Current)
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 50 V |
| Output Current Range | 0 to 0.5 A |
| Maximum Output Power | 25 W |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Current) | 0.01% + 250 µA |
| Line Regulation (Voltage) | 0.01% + 2 mV |
| Ripple and Noise (Voltage, RMS) | 0.5 mV RMS |
| Input Voltage | 115/230 VAC, 48–66 Hz |
| Operating Temperature | 0°C to 55°C |
| Output Terminals | Floating, with chassis ground connection available |
| Model | 6215A |
|---|
The Keysight (Agilent) 6215A DC power supply delivers 0 to 25 VDC output and up to 0.4 amps current, with minimal load and source effect at just 4 mV. It supports constant voltage or current limiting modes and includes output binding posts. Front-panel controls allow coarse and fine voltage adjustments, while a combination volt/ammeter is switch selectable for precise monitoring.
Ideal for precise electronic applications, the 6215A operates on 115 VAC ±10% at 48–440 Hz, offering stable and reliable performance in varied lab environments.
Testwall can supply the used Keysight (Agilent) 6215A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6215A.
