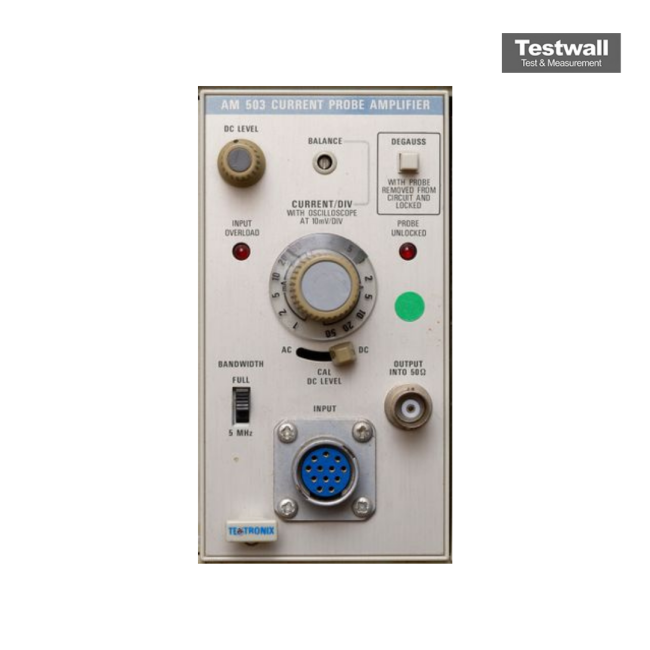

Tektronix AM503S
| Attribute | Value |
|---|---|
| Current Measurement Range | 100 mA to 100 A AC/DC |
| Bandwidth | DC to 50 MHz |
| Probe Compatibility | Compatible with A6302, A6303, A6312, A6315, A6316, A6317 current probes |
| Power Supply | Powered via TM500 or TM5000 power module mainframe |
| Output Sensitivity | 1 mV/mA to 10 mV/A |
| DC Accuracy | ±1% of full scale |
| Package Contents | AM503B Current Probe Amplifier, A6302 Current Probe, and 1101 Probe Cable |
| Operating Temperature | 0°C to +50°C |
| Form Factor | Single-wide TM500/TM5000 plug-in module |
| Maximum Conductor Size | Up to 5 mm diameter conductor (probe dependent) |
Tektronix AM503S Current Probe System (inc A6302 Probe) Options:
- AM503S - 01 - Adds A6303 Probe
- AM503S - 03 - Substitutes A6303 Probe For A6302 Probe
- AM503S - 05 - Substitutes A6312 Probe For A6302 Probe
- AM503S - 09 - Deletes A6302 Probe
| Model | AM503S |
|---|
The Tektronix AM503S Current Probe System, including the A6302 probe, offers advanced current measurement capabilities, combining a split-core transformer for AC and a Hall Effect device for DC measurements. It delivers broadband performance from DC to 50 MHz, ensuring precision and reliability. The AM5030 programmable current probe amplifier enables automated measurements via GPIB, streamlining testing workflows for maximum efficiency.
This system is ideal for engineers requiring high-accuracy AC/DC current measurements in research, development, and troubleshooting environments. Its integration ensures reduced setup complexity and rapid measurement capability.
Testwall can supply the used Tektronix AM503S Current Probe System (inc A6302 Probe), fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix AM503S Current Probe System (inc A6302 Probe).
