Keysight (Agilent)
Keysight (Agilent) 6260B
10V 100A 1000W DC Power Supply
0 to 7V Output Voltage Range
0 to 200A Output Current Range
1400W Maximum Output Power
±(0.05% + 5mV) Voltage Programming Accuracy
±(0.2% + 200mA) Current Programming Accuracy
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 7V |
| Output Current Range | 0 to 200A |
| Maximum Output Power | 1400W |
| Voltage Programming Accuracy | ±(0.05% + 5mV) |
| Current Programming Accuracy | ±(0.2% + 200mA) |
| Load Regulation (Voltage) | ±1mV |
| Load Regulation (Current) | ±20mA |
| Input Voltage | 115/230 VAC, 47-63 Hz |
| Operating Temperature | 0°C to 55°C |
| Form Factor | Rack Mountable, 3U |
Keysight Technologies 6260B Options:
- 6260B - 005 - 50 Hz ac input: optimizes power supplies that require adjustment/modification for 50 Hz operation
- 6260B - 010 - Chassis slides: for access to rack mounted power supplies
- 6260B - 016 - 115 V ac ±10% single phase input: consists of replacing power transformer and circuit breaker, and reconnecting bias transformer, RFI choke and fans
- 6260B - 022 - Voltage and current programming coefficients and zero output adjust: allows V and I programming coefficients and zero output to be conveniently adjusted to 0.1% accuracy via access holes in the rear panel
- 6260B - 026 - 115 V ac ±10% single phase input: consists of replacing the input circuit breaker and reconnecting the power transformer, bias transformer, RFI choke, and fans
- 6260B - 027 - 208 V ac ±10% single phase input: consists of reconnecting power transformer taps, and other components where necessary
- 6260B - 028 - 230 V ac ±10% single phase input: consists of reconnecting power transformer taps, and other components where necessary
- 6260B - 040 - Multiprogrammer interface: prepares standard HP power supplies for resistance programming by the 6942A or 6940B Multiprogrammers; includes Options 022, special calibration, and protection check-out procedures
- 6260B - 910 - One additional operating and service manual shipped with each power supply
| Model | 6260B |
|---|

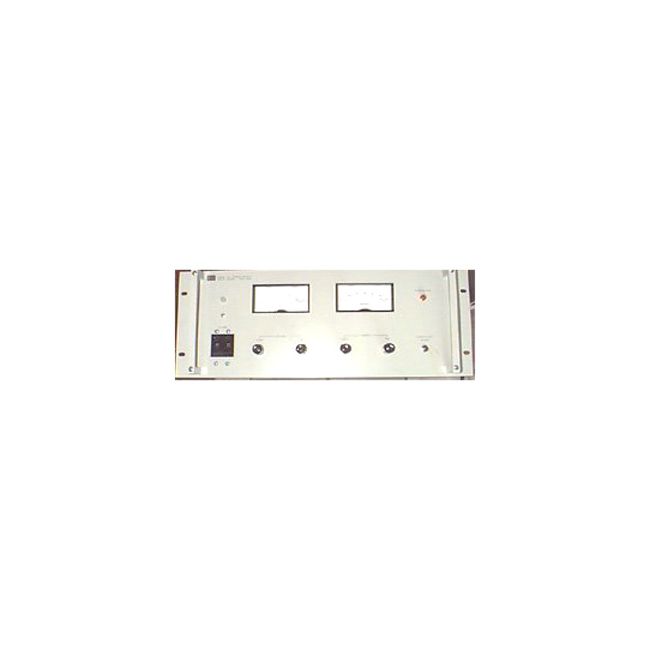

The Keysight (Agilent) 6260B is a high-current, constant-voltage/constant-current DC power supply delivering up to 10V and 100A in a compact, full-rack-width package. Designed for robust industrial and laboratory applications, it features analog programmability, remote sensing, and fast <50 µs load transient recovery. With ripple and noise limited to 500 µV RMS (CV) and 50 mA RMS (CC), it ensures clean, reliable output. It also includes over-voltage protection and supports auto-series, auto-parallel, and auto-tracking modes.
Engineered for high-efficiency power delivery, the 6260B maintains precise load and line regulation at 0.01% + 200 µV and 0.02% + 2 mA, making it ideal for powering sensitive, high-current devices.
Testwall can supply the used Keysight (Agilent) 6260B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6260B.
