Keysight (Agilent)
Keysight (Agilent) 6434B
0 to 60 V Output Voltage Range
0 to 6 A Output Current Range
200 W Maximum Output Power
Single Output Number of Outputs
0.1% + 30 mV Voltage Programming Accuracy
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 60 V |
| Output Current Range | 0 to 6 A |
| Maximum Output Power | 200 W |
| Number of Outputs | Single Output |
| Voltage Programming Accuracy | 0.1% + 30 mV |
| Current Programming Accuracy | 0.2% + 15 mA |
| Load Regulation (Voltage) | 2 mV |
| Interface/Bus | GPIB (IEEE-488) |
| AC Input Voltage | 100/120/220/240 VAC, 47–63 Hz |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies 6434B Options:
- 6434B - Std - 115 V ac, ±10%, single phase, 57-63 Hz
- 6434B - 005 - Realignment for 50 Hz operation
- 6434B - 010 - Chassis slides
- 6434B - 027 - 208 V ac, ±10%, single phase, 57-63 Hz
- 6434B - 028 - 230 V ac, ±10%, single phase, 57-63 Hz
- 6434B - 910 - One extra operating and service manual shipped with each power supply
| Model | 6434B |
|---|

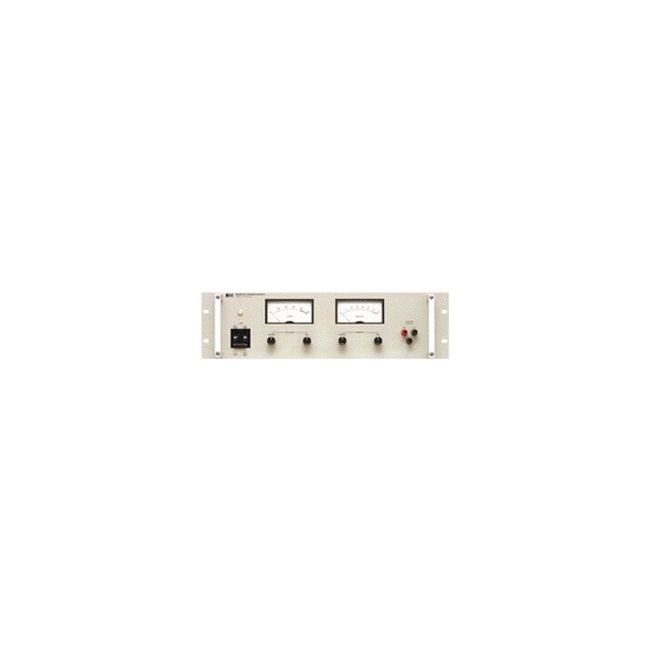

The Keysight (Agilent) 6434B DC Power Supply offers a solid-state, compact solution with 0–40V and 0–25A output, delivering up to 1000W. It supports constant voltage/current operation with seamless transitions between modes.
Designed for bench or relay rack use, it features efficiency up to 75% and strong transient immunity, with input power requirements of 115 VAC ±10% at 57–63 Hz.
Testwall can supply the used Keysight (Agilent) 6434B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6434B.
