Keysight (Agilent) 6469C
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 20 V |
| Output Current Range | 0 to 250 A |
| Maximum Output Power | 5000 W |
| Number of Outputs | 1 |
| Programming Interface | GPIB (IEEE-488) |
| Voltage Regulation (Load) | 0.01% + 2 mV |
| Current Regulation (Load) | 0.01% + 25 mA |
| Input Voltage | 208/220/240 VAC, 3-phase |
| Operating Temperature | 0°C to 55°C |
| Form Factor | Rack Mountable |
Keysight Technologies 6469C Options:
- 6469C - 001 - 208 V ac, ±10%, 3-phase, 55 A/phase, 57-63 Hz
- 6469C - 002 - 230 V ac, ±10%, 3-phase, 50 A/phase, 57-63 Hz
- 6469C - 003 - 460 V ac, ±10%, 3-phase, 25 A/phase, 57-63 Hz
- 6469C - 005 - Realignment for 50 Hz operation
- 6469C - 023 - Rack mounting attachments for standard 19" rack
- 6469C - 031 - 380 V ac, ±10%, 3-phase, 30 A/phase, 57-63 Hz
- 6469C - 032 - 400 V ac, ±10%, 3-phase, 28.5 A/phase, 57-63 Hz
- 6469C - 040 - Prepares power supply to be programmed with resistance by a 6940B or 6942A
- 6469C - 910 - One extra operating and service manual shipped with each power supply
| Model | 6469C |
|---|

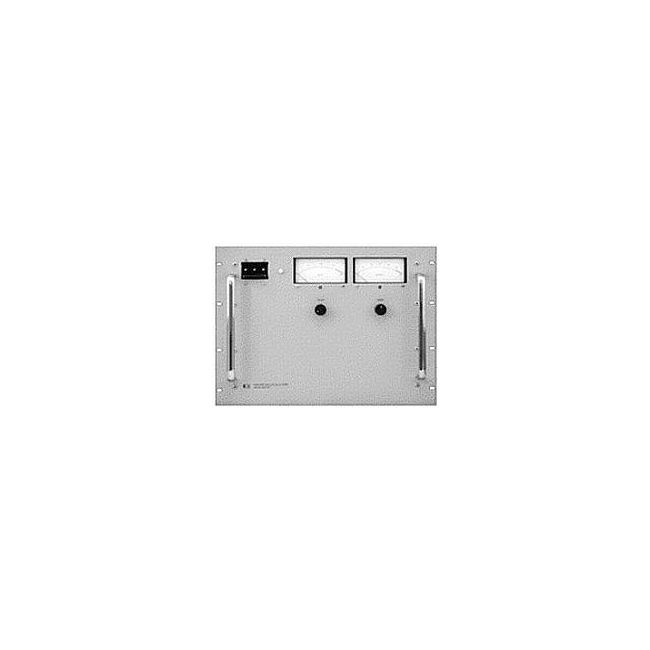

The Keysight (Agilent) 6469C is a robust SCR-regulated power supply offering 0-36V voltage and up to 300A current with a 1000W output, ideal for medium to high-power DC applications. It features intuitive panel meters, rear bus bar connectivity for remote operations, and multiple safety mechanisms including thermal shutdown, overload protection, and an optional internal crowbar.
Perfect for regulated power applications, it includes auto-series, -parallel, and -tracking capabilities with interlock support in master-slave setups, ensuring stability and safety under demanding conditions.
Testwall can supply the used Keysight (Agilent) 6469C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6469C.
