Keysight (Agilent) 6621A
| Attribute | Value |
|---|---|
| Number of Outputs | 2 |
| Output Voltage Range | 0 to 20 V (Channel 1), 0 to 20 V (Channel 2) |
| Output Current Range | 0 to 5 A (Channel 1), 0 to 5 A (Channel 2) |
| Maximum Output Power | 100 W per channel, 200 W total |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Current) | 0.01% + 250 µA |
| Programming Interface | GPIB (IEEE-488) |
| Output Ripple and Noise (Voltage) | 1 mV rms / 5 mV peak-to-peak |
| Operating Temperature Range | 0°C to 55°C |
| Input Voltage | 100/120/220/240 VAC, 47–63 Hz |
Keysight Technologies 6621A Options:
- 6621A - Opt 100 - 87 to 106 Vac, 47 to 66 Hz Input, 6.3 A (Japan only)
- 6621A - Opt 120 - 104 to 127 Vac, 47 to 63 Hz
- 6621A - Opt 220 - 191 to 233 Vac, 47 to 66 Hz, 3.0 A
- 6621A - Opt 240 - 209 to 250 Vac, 47 to 66 Hz, 3.0 A
- 6621A - Opt 750 - Relay Control and DFI/RI
- 6621A - Opt S50 - Similar to option 750, however the remote inhibit does not latch
- 6621A - Opt 908 - Rack-mount Kit (p/n 5062-3977)
- 6621A - Opt 909 - Rack-mount Kit w/Handles (p/n 5063-9221)
- 6621A - Opt 0L2 - Extra Standard Documentation Package
- 6621A - Opt 0B3 - Service Manual
- 6621A - Opt 0B0 - No documentation package
| Model | 6621A |
|---|

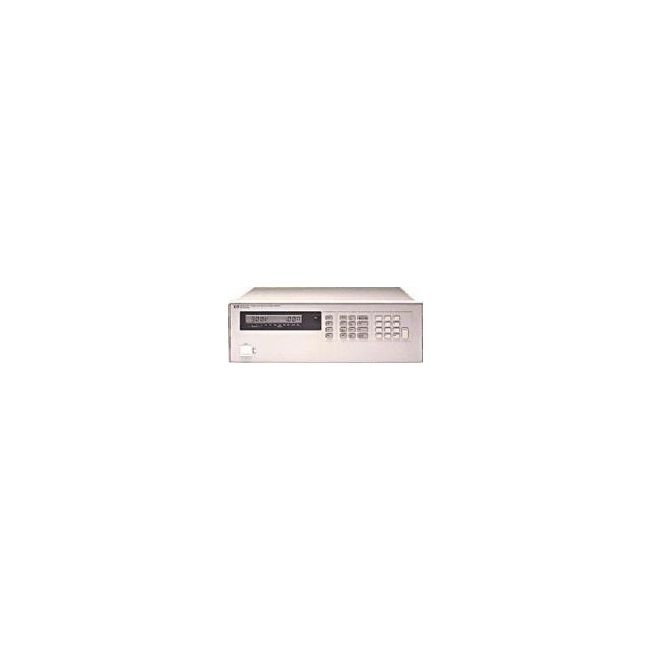

The Keysight (Agilent) 6621A is an 80W dual-output DC power supply offering dual-range outputs of 0–7V/10A and 0–20V/4A. It provides fast, low-noise outputs with ripple as low as 500 µV rms and 3 mV peak-to-peak, ensuring high accuracy with voltage programming at 0.06% + 19 mV and current at 0.16% + 100 mA. Integrated measurement capabilities and advanced programmable features enhance precision and reliability.
Ideal for testing setups requiring versatility and protection, the 6621A is compact in a 3U package and supports GPIB for seamless integration and automation.
Testwall can supply the used Keysight (Agilent) 6621A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6621A.
