Tektronix SA2600 10KHz - 6.2GHz Spectrum Analyser
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz to 6.2 GHz |
| Display Average Noise Level (DANL) | -161 dBm/Hz (typical, preamp on) |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typical) |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz |
| Dynamic Range | Up to 78 dB (third-order intermodulation) |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +30 dBm (1 Watt) |
| Amplitude Accuracy | ±0.5 dB (typical) |
| Sweep Time | 1 ms to 1000 s |
| Connectivity & Interface | USB, LAN (Ethernet), HDMI |
| Model | SA2600 |
|---|

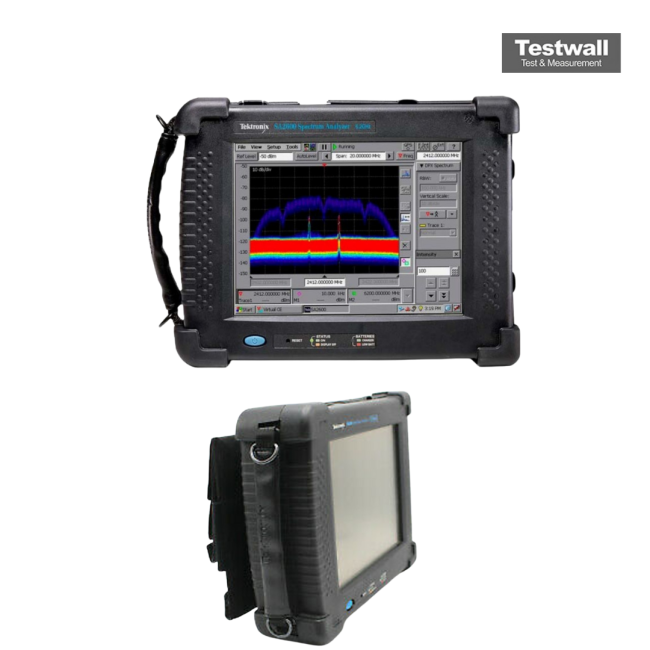

The Tektronix SA2600 Spectrum Analyzer delivers lab-grade performance in a handheld form, offering a wide 10 kHz to 6.2 GHz frequency range, -153 dBm DANL, and a 70 dB SFDR. Integrated with GPS, LAN, and advanced scanning capabilities like SCF and DPX™ Live RF display, it ensures precise signal detection and classification with up to 10,000 spectrums/sec and 125 µs POI.
Its rugged MIL-PRF-28800F design, 5-hour dual battery operation, and intuitive interface with Tap-and-Walk support both indoor and outdoor spectrum analysis needs.
Testwall can supply the used Tektronix SA2600 Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix SA2600 Spectrum Analyzer.
