Keysight (Agilent) 6623A
| Attribute | Value |
|---|---|
| Number of Outputs | 3 |
| Output Voltage Range | 0 to 20V (two outputs), 0 to 50V (one output) |
| Output Current Range | 0 to 4A (two outputs), 0 to 2A (one output) |
| Total Power Output | 200W |
| Programming Interface | GPIB (IEEE-488) |
| Voltage Programming Accuracy | 0.05% + 10mV |
| Current Programming Accuracy | 0.1% + 5mA |
| Load Regulation (Voltage) | 2mV |
| Operating Temperature Range | 0°C to 55°C |
| Form Factor | Rack Mountable, 3U Half-Rack |
Keysight Technologies 6623A Options:
- 6623A - Opt 100 - 87 to 106 Vac, 47 to 66 Hz Input, 6.3 A (Japan only)
- 6623A - Opt 120 - 104 to 127 Vac, 47 to 63 Hz
- 6623A - Opt 220 - 191 to 233 Vac, 47 to 66 Hz, 3.0 A
- 6623A - Opt 240 - 209 to 250 Vac, 47 to 66 Hz, 3.0 A
- 6623A - Opt 750 - Relay Control and DFI/RI
- 6623A - Opt S50 - Similar to option 750, however the remote inhibit does not latch
- 6623A - Opt 908 - Rack-mount Kit (p/n 5062-3977)
- 6623A - Opt 909 - Rack-mount Kit w/Handles (p/n 5063-9221)
- 6623A - Opt 0L2 - Extra Standard Documentation Package
- 6623A - Opt 0B3 - Service Manual
- 6623A - Opt 0B0 - No documentation package
- 6623A - J03 - Special Order Option (2 x 40W outputs + 1 x 105W output configuration)
| Model | 6623A |
|---|

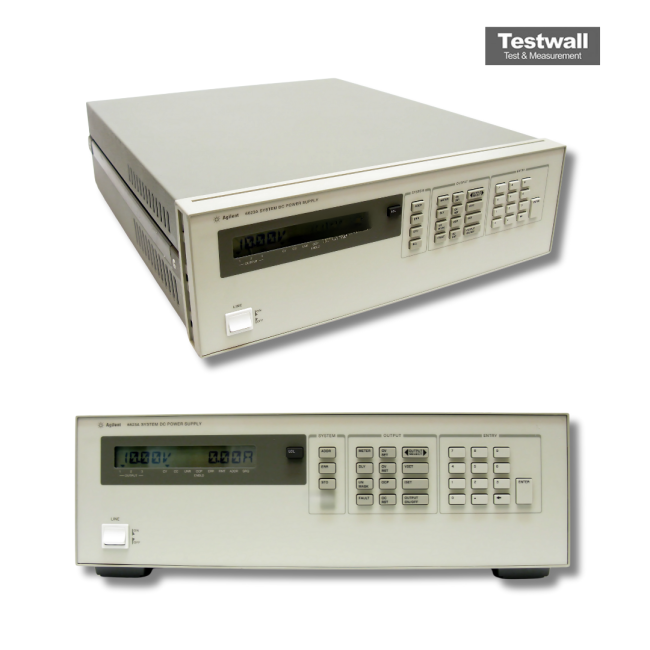

The Keysight (Agilent) 6623A is an 80W triple-output DC power supply designed for high-performance testing. It delivers dual-range outputs with fast, low-noise performance and built-in measurement capabilities. Voltage ranges from 0–7 V at 5 A to 0–50 V at 0.8 A, offering accurate programming with ±0.06% voltage and ±0.16% current accuracy.
This versatile unit helps optimize testing by reducing time and increasing system precision, all within a compact 3U high chassis.
Testwall can supply the used Keysight (Agilent) 6623A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6623A
