Keysight (Agilent)

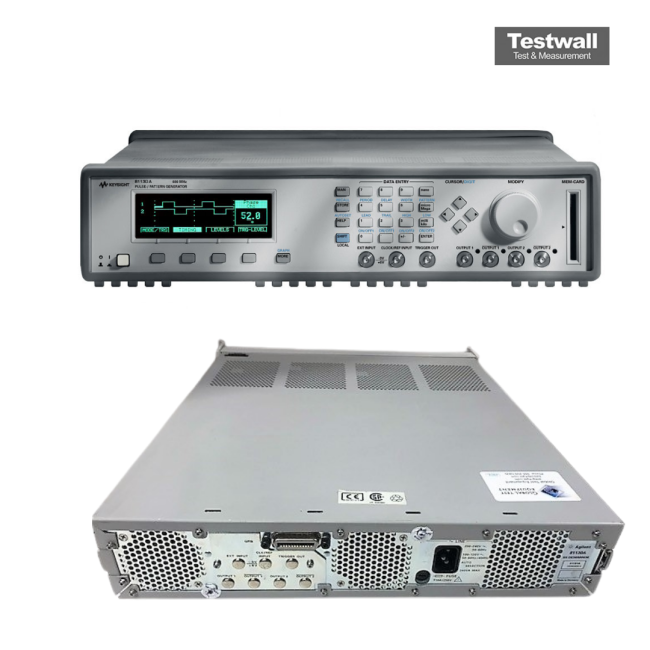

Keysight (Agilent) 81130A
600MHz Pulse/Pattern Generator
1.25 ns to period - 1.25 ns Pulse Width
2 ps Timing Resolution
0.001% + 15 ps RMS Jitter
0 to 3 µs Delay
50 Ω Output Impedance
| Attribute | Value |
|---|---|
| Pulse Width | 1.25 ns to period - 1.25 ns |
| Timing Resolution | 2 ps |
| Jitter | 0.001% + 15 ps RMS |
| Delay | 0 to 3 µs |
| Output Impedance | 50 Ω |
| Channels | 1 or 2 (81131A or 81132A output modules) |
| Repetition Rate | up to 400 MHz (81131A) or 660 MHz (81132A) |
| Data Rate | up to 400 Mb/s (81131A) or 660 Mb/s (81132A) per channel |
| Amplitude | 0.1 to 3.8 Vpp (81131A), 0.1 to 2.5 Vpp (81132A) |
| Transition Times | 0.8 or 1.6 ns (81131A), 550 ps typ. (81132A) |
| Pattern Memory | 64 kbit per channel, PRBS 2^n - 1, n = 7 to 15 |
| Interfaces | GPIB |
The Keysight (Agilent) 81130A Pulse Data Generator Mainframe delivers flexible, high-precision pulse generation when paired with either one or two 81131A or 81132A output modules. Configured with 81131A modules, it supports frequencies from 1 kHz to 400 MHz; with 81132A, it extends performance to 660 MHz and 1.32 Gbps. Each configuration supports dual-channel operation but only with identical module types. It features large 64 kbit segmentable memory, pattern and burst modes, and advanced PRBS generation for high-speed digital logic testing.
The 81130A offers EXOR channel addition, variable delays, and four independent timing eyes for shaping nearly arbitrary pulses in a single output. Pattern generation ranges from 80 MHz to 660 MHz, enabling clean, reliable signals across demanding serial data protocols. Its integrated PLL oscillator, precision timing engine, and autoset display interface make it ideal for modern digital and communication testing.
Testwall can supply the used Keysight (Agilent) 81130A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 81130A.
