Keysight (Agilent)
Keysight (Agilent) 8181B
Data Error Analyzer Instrument Type
100 Mbit/s to 2 Gbit/s Bit Rate Range
1 Channel Number of Channels
Up to 2^23 - 1 bits (PRBS) Pattern Length
-2 V to +2 V Input Voltage Range
| Attribute | Value |
|---|---|
| Instrument Type | Data Error Analyzer |
| Bit Rate Range | 100 Mbit/s to 2 Gbit/s |
| Number of Channels | 1 Channel |
| Pattern Length | Up to 2^23 - 1 bits (PRBS) |
| Input Voltage Range | -2 V to +2 V |
| Output Voltage Range | 0.25 V to 2 V (adjustable amplitude) |
| Interface | GPIB (IEEE-488) |
| Clock Source | Internal and External Clock Reference |
| Trigger Output | Provides external trigger output for synchronization |
| Power Requirements | 100-240 VAC, 50/60 Hz |
| Model | 8181B |
|---|

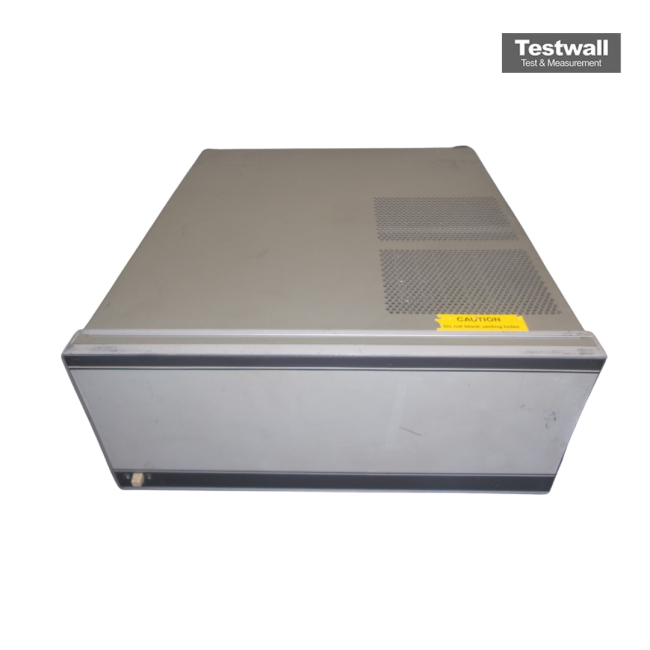

The Keysight (Agilent) 8181B is a data generator extender module designed to boost data generation systems with extended pattern lengths and high-speed data outputs.
It is tailored for precise testing of high-performance digital circuits, ensuring reliable, repeatable signal generation for in-depth device evaluations.
Testwall can supply the used Keysight (Agilent) 8181B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8181B.
