Keysight (Agilent) 83446A
| Attribute | Value |
|---|---|
| Frequency Range | 2.5 GHz to 10 GHz |
| Function | Lightwave Clock Recovery and Signal Identification |
| Data Rate Range | 2.5 Gb/s to 10 Gb/s |
| Input Wavelength Range | 1100 nm to 1650 nm |
| Optical Input Connector | FC/PC Single-Mode Fiber |
| Clock Output | Recovered Clock Signal Output via SMA Connector |
| Maximum Optical Input Power | +3 dBm |
| Minimum Optical Input Power | -20 dBm |
| Power Requirements | Line Module for HP/Agilent/Keysight 70000 Series Mainframe |
| Compatible Mainframe | HP/Agilent/Keysight 70004A Mainframe |
| Model | 83446A |
|---|

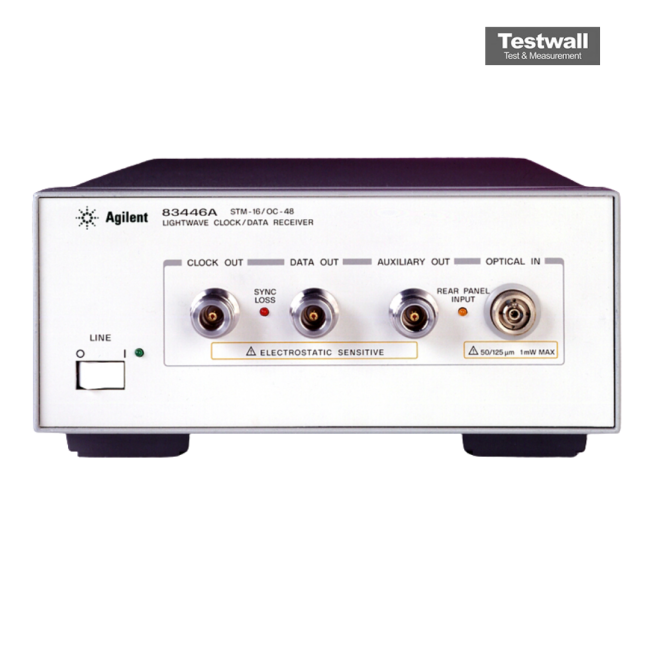

The Keysight (Agilent) 83446A Lightwave Clock/Data Receiver accurately extracts clock and data from digitally modulated lightwave signals at 2.48832 Gb/sec (OC-48/STM-16). It features a high-gain avalanche photodiode (APD), a gain-controlled amplifier, and a clock/data recovery hybrid, providing error-free output from optical signals down to -27 dBm at wavelengths of 1310 or 1550 nm.
Engineered for high-speed BERTs like the Keysight 86130A or 71612C, it enables direct BER analysis on optical signals via clock/data outputs. An auxiliary port supports APD output monitoring.
Testwall can supply the used Keysight (Agilent) 83446A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83446A.
