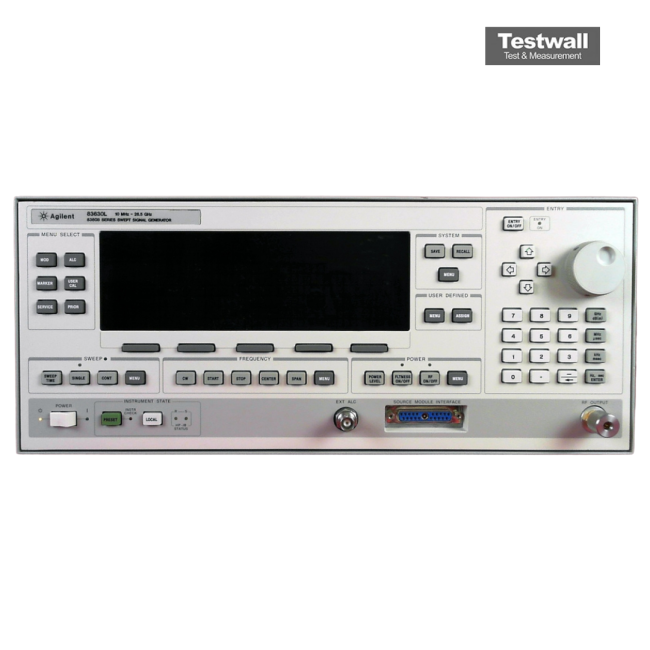

Keysight (Agilent) 83630L
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 26.5 GHz |
| Frequency Resolution | 1 kHz |
| Interfaces | GPIB |
| Dimensions | 425 × 178 × 648 mm |
| Weight | 27 kg |
| Output Power | -20 dBm to +13 dBm (+10 dBm at 20 to 26.5 GHz) |
| SSB Phase Noise | -80 dBc/Hz at 10 GHz, 10 kHz offset |
| Level Accuracy | ±0.7 dB at 2 to 20 GHz, > -10 dBm (spec.) |
| Non-Harmonics | -60 dBc to 20 GHz, -54 dBc to 40 GHz, -52 dBc to 50 GHz |
| Switching Speed | 15 ms + 5 ms per GHz step (max.) |
| Sweep Modes | step sweep, list mode, ramp sweep, power sweep (801 points) |
| Timebase Aging | 10 MHz, 5 × 10⁻¹⁰ per day, 1 × 10⁻⁷ per year |
| RF Output Connector | 3.5 mm male front panel |
Keysight (Agilent) 83630L Options:
Options available for the Keysight (Agilent) 836xxL synthesized swept CW generators. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- 83630L - 001 - Step attenuator
- 83630L - 004 - RF output moved to rear panel
- 83630L - 008 - 1 Hz frequency resolution
- 83630L - 1E5 - High-stability timebase
- 83630L - 1CM - Rack mount kit
- 83630L - 1CN - Front handle kit
- 83630L - 1CP - Rack mount kit with handles
The Keysight (Agilent) 83630L Synthesized Swept CW Generator offers +13 dBm calibrated output power, SSB phase noise of <-80 dBc at 10 GHz/10 kHz offset, and harmonics < -50 dBc up to 26.5 GHz.
It includes a complete analog sweeper and delivers -110 dBm output with step attenuator (Option 001), providing high performance and versatile sweep capability for RF applications.
Testwall can supply the used Keysight (Agilent) 83630L, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83630L.
Options and configurations
- Frequency Resolution: 1 kHz (1 Hz with Opt. 008)
- Output Power: -20 dBm (-110 dBm with Opt. 001) to +13 dBm (+10 dBm at 20 to 26.5 GHz)
- RF Output Connector: 3.5 mm male front panel (rear panel with Opt. 004)
