Keysight (Agilent) 84904L
| Attribute | Value |
|---|---|
| Frequency Range | 0.001 to 26.5 GHz |
| Attenuation Range | 0 to 110 dB |
| Attenuation Step Size | 10 dB |
| Number of Steps | 12 |
| Maximum Input Power | 1 W (30 dBm) |
| Impedance | 50 Ohm |
| Connector Type | 2.4 mm (m) input, 2.4 mm (f) output |
| SWR (Maximum) | 1.5 (0–18 GHz), 1.7 (18–26.5 GHz) |
| Switching Speed | 10 ms (maximum) |
| Control Interface | TTL/CMOS compatible, compatible with 11713A/B/C attenuator/switch driver |
| Model | 84904L |
|---|

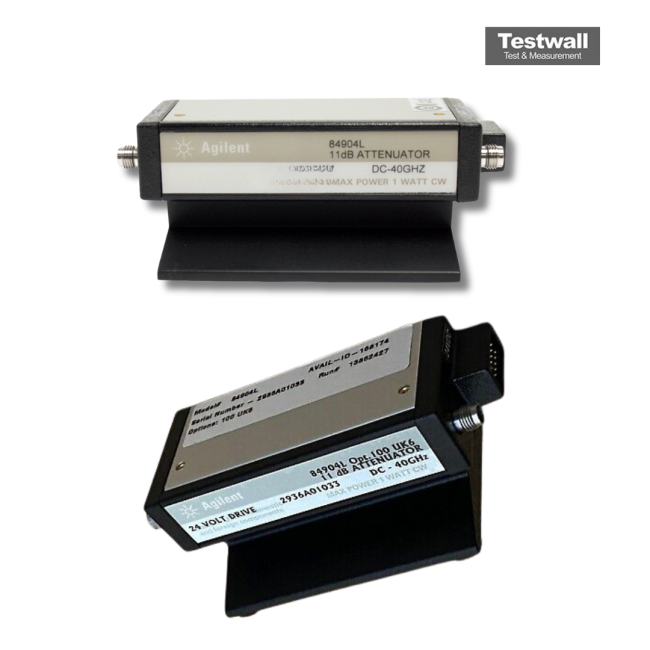

The Keysight (Agilent) 84904L programmable step attenuator supports frequencies up to 40 GHz with precise 1-dB steps across an 11 dB range. It offers superior repeatability under 0.03 dB and over 5 million cycles per section, leveraging thin-film attenuation cards for minimal insertion loss of just 2.4 dB at 40 GHz and excellent SWR ratings.
Perfectly suited for RF systems and automated test equipment, the 84904L's compact size and high-performance coaxial design enable easy integration and reliable measurements under rigorous conditions.
Testwall can supply the used Keysight (Agilent) 84904L, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 84904L
