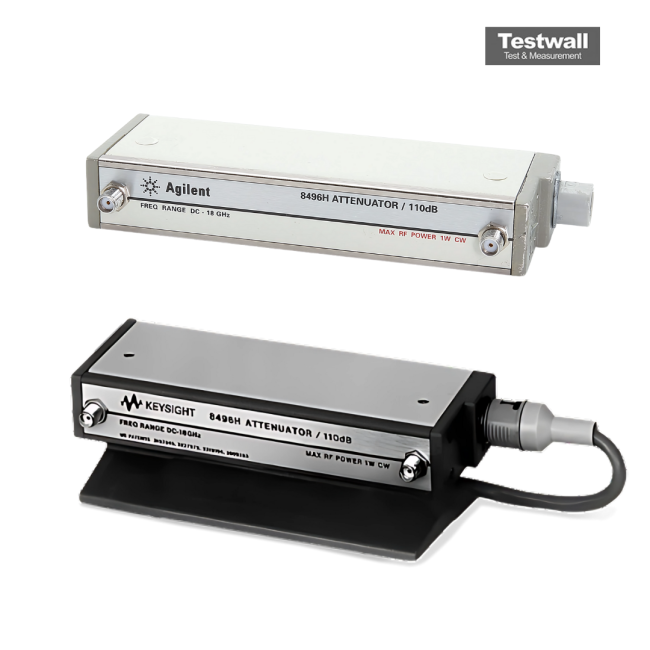

Keysight (Agilent) 8496H
18GHz 110dB Programmable Attenuator
0 to 18 GHz Frequency Range
0 to 110 dB Attenuation Range
10 dB Attenuation Step Size
1 W (30 dBm) Maximum Input Power
50 Ohm Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 0 to 18 GHz |
| Attenuation Range | 0 to 110 dB |
| Attenuation Step Size | 10 dB |
| Maximum Input Power | 1 W (30 dBm) |
| Impedance | 50 Ohm |
| Connector Type | APC-3.5 (SMA Compatible) |
| VSWR (Maximum) | 1.7:1 |
| Insertion Loss (0 dB Setting) | 2.4 dB maximum at 18 GHz |
| Operating Temperature Range | 0°C to +55°C |
| Attenuator Type | Programmable Step Attenuator |
| Model | 8496H |
|---|
The Keysight (Agilent) 8496H is a programmable step attenuator covering DC to 18 GHz with attenuation steps from 0 to 110 dB in 10 dB increments. Precision gold-plated leaf springs ensure superior reliability, repeatability (typically 0.01 dB), and a long service life exceeding 5 million cycles per section. Insertion loss is minimal (0.6 dB + 0.09 dB/GHz at 0 dB), and switching time is under 20 ms. With SWR as low as 1.5 up to 8 GHz and power handling up to 1 W average and 100 W peak, it meets demanding RF test needs. Connector options include type-N, SMA, or APC-7, and remote programming is supported via 12-pin Viking or optional 14-pin DIP.
Ideal for automated RF testing requiring high dynamic range, accuracy, and durability.
Testwall can supply the used Keysight (Agilent) 8496H, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8496H.
