Keysight (Agilent) N8975AZ-K40
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 26.5 GHz |
| Noise Figure Measurement Range | 0 dB to 30 dB |
| Noise Figure Uncertainty | ±0.05 dB (typical) |
| Gain Measurement Range | -20 dB to +60 dB |
| IF Input Frequency | 10 MHz to 26.5 GHz |
| Input Impedance | 50 Ohm |
| Display | 10.4-inch color LCD touchscreen |
| Interface/Connectivity | LAN (LXI), USB, GPIB |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 55°C |
| Model | N8975AZ-K40 |
|---|

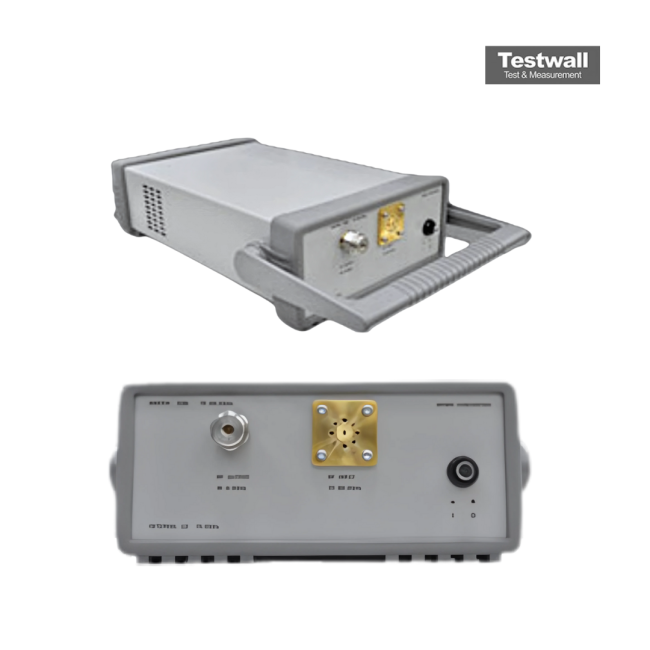

The Keysight (Agilent) N8975AZ-K40 is a high-performance block downconverter designed to extend the frequency range of the N8975A Noise Figure Analyzer from 26.5 GHz up to 40 GHz. This module utilizes an internal local oscillator to downconvert input signals into intermediate frequencies compatible with the NFA's measurement range, ensuring precise and efficient analysis in higher frequency bands.
Ideal for advanced noise figure measurements, the N8975AZ-K40 supports engineers working with cutting-edge RF systems, delivering reliable results across extended frequency ranges.
Testwall can supply the used Keysight (Agilent) N8975AZ-K40, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N8975AZ-K40.
