Keysight (Agilent) 86111A
| Attribute | Value |
|---|---|
| Module Type | Dual 20 GHz Plug-In Module for Infiniium DCA Oscilloscopes |
| Bandwidth | 20 GHz (electrical channels) |
| Number of Channels | 2 Electrical Channels |
| Rise Time | 17.5 ps (typical) |
| Input Impedance | 50 Ohms |
| Compatible Mainframes | Keysight 86100A, 86100B, 86100C Infiniium DCA Series |
| Wavelength Range (Optical) | Not applicable (electrical-only module) |
| Maximum Input Voltage | ±2 V DC + Peak AC |
| Connector Type | 2.4 mm coaxial input connectors |
| Vertical Scale Range | 10 mV/div to 200 mV/div |
| Model | 86111A |
|---|

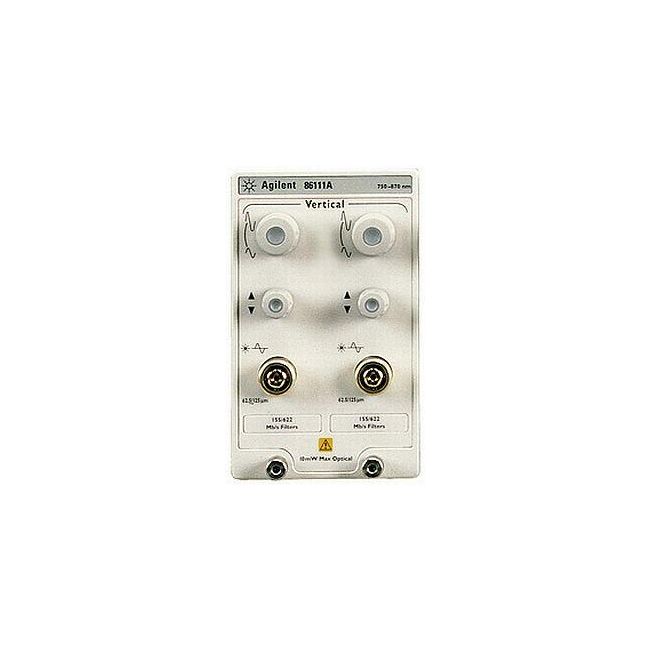

The Keysight (Agilent) 86111A is a dual-channel, 3 GHz optical module that allows simultaneous measurements across multiple channels, optimizing throughput for parallel optic components. It supports 62.5/125 fiber compatibility, a wavelength range of 750–860 nm, RMS noise of 1.5 µW (3 GHz BW), and a maximum input power of 0.4 mW. The module features reference receiver capabilities for rates of 155/622 Mb/s or 1.063/1.25 Gb/s.
Designed for integration with 86100A/B/C Infiniium DCA/DCA-J mainframes, this module enables testing of multiple ports or devices concurrently, significantly improving efficiency in manufacturing or lab settings.
Testwall can supply the used Keysight (Agilent) 86111A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86111A.
