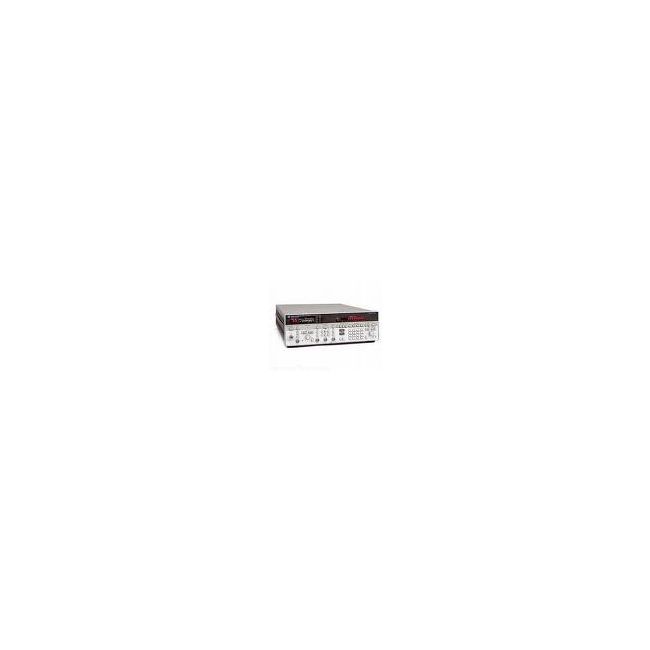

Keysight (Agilent) 8673M
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 26.5 GHz |
| Frequency Resolution | 1 Hz |
| Output Power Range | -20 dBm to +13 dBm |
| Output Power Resolution | 0.01 dB |
| Phase Noise (Typical) | -116 dBc/Hz at 10 kHz offset (at 10 GHz) |
| Spectral Purity | Low harmonic and spurious outputs |
| Output Connector | Type-N (female), 50 Ohm |
| Switching Speed | 10 ms typical |
| Power Requirements | 100–240 VAC, 47–63 Hz |
| Operating Temperature Range | 0°C to 55°C |
| Model | 8673M |
|---|
The Keysight (Agilent) 8673M Synthesized Signal Generator operates across 2.0 to 18.0 GHz in three bands, featuring linear AM and FM modulation control via external voltage up to 1V peak. It supports simultaneous AM, FM, and pulse modulation, ideal for simulating advanced signal environments. Output ranges from +8 to -120 dBm with 0.1 dB resolution, and includes a built-in HPIB interface.
Its integrated pulse, amplitude, and frequency modulation capabilities offer versatile testing configurations.
Testwall can supply the used Keysight (Agilent) 8673M, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8673M.
