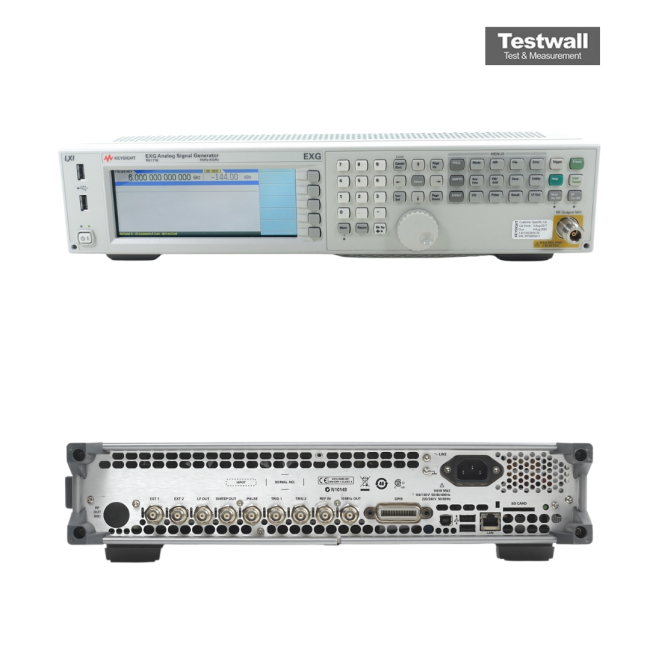

Keysight (Agilent) N5171B
Option 506 (9 kHz to 6 GHz) – EXG Analog Signal Generator, Type N (f)
9 kHz to 6 GHz Frequency Range
0.001 Hz Frequency Resolution
step sweep, list mode Sweep Modes
< ±1 × 10⁻⁶ per year Timebase Aging
Type-N female RF Output Connector
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6 GHz |
| Frequency Resolution | 0.001 Hz |
| Sweep Modes | step sweep, list mode |
| Timebase Aging | < ±1 × 10⁻⁶ per year |
| RF Output Connector | Type-N female |
| Output Power | -144 to +18 dBm at 10 MHz to 3 GHz |
| SSB Phase Noise | -122 dBc/Hz at 1 GHz, 20 kHz offset (typ.) |
| Modulation | AM, FM, ΦM, pulse (depending on configuration) |
| Level Accuracy | ±0.6 dB (spec.) at 5 MHz to 6 GHz, max. to -60 dBm |
| Harmonics | < -35 dBc (spec.) at 9 kHz to 3 GHz |
| Non-Harmonics | -60 to -75 dBc (spec.), >10 kHz offset |
| Switching Speed | ≤ 1.15 ms (typ.) |
| Interfaces | GPIB, LAN (LXI), USB |
| Dimensions | 426 × 88 × 489 mm |
| Weight | 13.6 kg |
Available configurations
| Model | Frequency range | Configuration |
| N5171B-501 | 9 kHz to 1 GHz | Analog signal generator |
| N5171B-503 | 9 kHz to 3 GHz | Analog signal generator |
| N5171B-506 | 9 kHz to 6 GHz | Analog signal generator |
Keysight (Agilent) N5171B-506 Options:
- N5171B-506 - 501 - RF analog model, 9 kHz to 1 GHz (N5171B only)
- N5171B-506 - 503 - RF analog model, 9 kHz to 3 GHz
- N5171B-506 - 506 - RF analog model, 9 kHz to 6 GHz
- N5171B-506 - UNT - Analog modulation (AM, FM, and ΦM)
- N5171B-506 - UNW - Narrow pulse modulation, including internal pulse generator
- N5171B-506 - 303 - LF multifunction generator
- N5171B-506 - 320 - Pulse train generator (requires Option UNW)
- N5171B-506 - 1EM - Rear panel RF output (moves RF output to rear panel)
- N5171B-506 - 1EQ - Output attenuator
- N5171B-506 - 1ER - Flexible reference input, 1-50 MHz
- N5171B-506 - 099 - Expanded license key upgradability
The Keysight (Agilent) N5171B-506 EXG Analog Signal Generator supports a wide frequency range from 9 kHz to 6 GHz, offering high output power up to +21 dBm and exceptional phase noise for advanced RF testing.
Ideal for aerospace, radar, LTE, and Wi-Fi applications, it features fast switching speeds below 900 µs and standard analog modulation types including AM, FM, phase, and pulse.
Testwall can supply the used Keysight (Agilent) N5171B-506, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality.
Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5171B-506.
Options and configurations
- Frequency Range: 9 kHz to 6 GHz (Opt. 506)
- Output Power: -144 to +18 dBm (+21 dBm with Opt. 1EA) at 10 MHz to 3 GHz
- Modulation: AM, FM, ΦM (Opt. UNT), pulse (Opt. UNW)
- Switching Speed: ≤ 1.15 ms (typ.); ≤ 950 µs (typ.) with Opt. UNZ
