Keysight (Agilent) 8981B
| Attribute | Value |
|---|---|
| Frequency Range | 100 MHz to 1.5 GHz |
| Noise Figure Measurement Range | 0 to 30 dB |
| Measurement Uncertainty | ±0.1 dB typical |
| Input Impedance | 50 Ohms |
| Display | Built-in CRT display for noise figure and gain measurements |
| Gain Measurement Range | -10 to 40 dB |
| ENR (Excess Noise Ratio) Input | Supports external noise source ENR table entry |
| Interface | GPIB (IEEE-488) for remote control and automation |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
Keysight Technologies 8981B Options:
- 8981B - H20 - 200 to 350 MHz frequency range, 70 MHz RF BW, Calibrated modulation analysis
- 8981B - H32 - 321.4 MHz frequency range, 70 MHz RF BW, Calibrated modulation analysis
- 8981B - H35 - 350 to 500 MHz frequency range, 70 MHz RF BW, Calibrated modulation analysis
- 8981B - H36 - 360 to 550 MHz frequency range, 70 MHz RF BW, Calibrated modulation analysis
- 8981B - H50 - 500 to 900 MHz frequency range, 70 MHz RF BW, Calibrated modulation analysis
- 8981B - H75 - 750 to 1250 MHz frequency range, 70 MHz RF BW, Calibrated modulation analysis
| Model | 8981B |
|---|

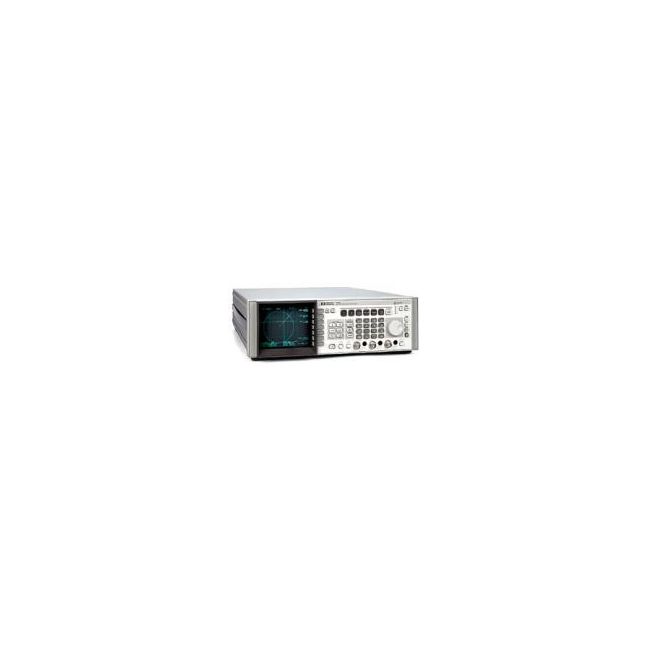

The Keysight (Agilent) 8981B Vector Modulation Analyzer is a two-channel X-Y sampling oscilloscope that precisely analyzes I and Q components of digital microwave signals like QPSK, 16QAM, and 256QAM. It features a 50 MHz to 200 MHz IF input range with a built-in I/Q demodulator and supports up to 350 MHz I vs. Q bandwidth. It includes 12-bit digitizing, less than 0.5° quadrature imbalance, and 0.1 dB amplitude imbalance.
Ideal for measuring coherent phase and amplitude modulation, it provides detailed markers for phase, amplitude, and time. View magnitude and phase versus time or at specific time markers.
Testwall can supply the used Keysight (Agilent) 8981B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8981B.
