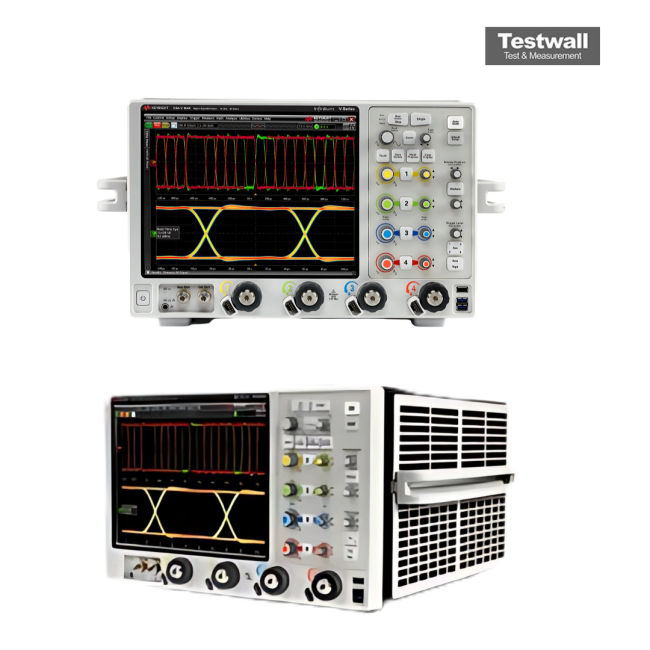

Keysight (Agilent) DSAV164A
| Attribute | Value |
|---|---|
| Bandwidth | 16 GHz |
| Sample Rate | 80 GSa/s |
| Number of Channels | 4 Analog Channels |
| Memory Depth | 2 Gpts (standard), up to 4 Gpts (optional) |
| Vertical Resolution | 8-bit (up to 10-bit with enhanced resolution) |
| Rise Time | 21.9 ps |
| Display | 15.4-inch color LCD touchscreen |
| Operating System | Windows 7 (64-bit) |
| Input Impedance | 50 Ohm |
| Connectivity/Interfaces | USB, LAN (LXI), GPIB (optional) |
Keysight (Agilent) DSAV164A Options:
- DSAV164A - DSOV000-100 - 100 Mpts/channel memory upgrade (standard on DSA model)
- DSAV164A - DSOV000-200 - 200 Mpts/channel memory upgrade
- DSAV164A - DSOV000-500 - 500 Mpts/channel memory upgrade
- DSAV164A - DSOV000-01G - 1 Gpts/channel memory upgrade
- DSAV164A - DSOV000-02G - 2 Gpts/channel memory upgrade
- DSAV164A - DSOV000-801 - 1 TB removable Solid State Drive (SSD) with Windows 7
- DSAV164A - DSOV000-805 - GPIB card-interface
- DSAV164A - DSOV000-808 - Performance verification and deskew fixture
- DSAV164A - DSOV000-A6J - ANSI Z540 compliant calibration
- DSAV164A - DSOV000-AMG - Calibration + uncertainties + guardbanding (accredited)
- DSAV164A - DSOV13GBW - Bandwidth upgrade to 13 GHz
- DSAV164A - DSOV16GBW - Bandwidth upgrade to 16 GHz
- DSAV164A - DSOV20GBWU - Bandwidth upgrade to 20 GHz
- DSAV164A - DSOV25GBWU - Bandwidth upgrade to 25 GHz
- DSAV164A - DSOV33GBWU - Bandwidth upgrade to 33 GHz
- DSAV164A - N2810A-100 - 50 Mpts/channel to 100 Mpts/channel memory upgrade
- DSAV164A - N2810A-200 - 100 Mpts/channel to 200 Mpts/channel memory upgrade
- DSAV164A - N2810A-500 - 200 Mpts/channel to 500 Mpts/channel memory upgrade
- DSAV164A - N2810A-01G - 500 Mpts/channel to 1 Gpts/channel memory upgrade
- DSAV164A - N2810A-02G - 1 Gpts/channel to 2 Gpts/channel memory upgrade
- DSAV164A - N2119AU - Hardware serial trigger upgrade
- DSAV164A - N2110A-500 - Additional 500 GB removable Solid State Drive (SSD) with Windows 7
- DSAV164A - N2110A-01T - Additional 1 TB removable Solid State Drive (SSD) with Windows 7
- DSAV164A - 82351B - GPIB card-interface
- DSAV164A - N2117A - Stack mount kit option for stacking two frames
- DSAV164A - N5470A - Rack mount
| Model | DSAV164A |
|---|
The Keysight (Agilent) DSAV164A Infiniium V-Series oscilloscope features a 16 GHz bandwidth, 4 analog channels, 80 GSa/s sample rate, and 2 Gpts memory for high-speed signal analysis and debugging. Its 1.32 mVrms noise floor and 100 fs jitter enable precise measurement, with over 5.5 ENOB and >50 dBC SFDR.
Ideal for engineers needing high-resolution signal integrity analysis, the DSAV164A includes tools like Serial Data Analysis, EZJIT Complete, and 100 Mpts memory for in-depth testing.
Testwall can supply the used Keysight (Agilent) DSAV164A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSAV164A.
