Keysight (Agilent) DSO81204A
| Attribute | Value |
|---|---|
| Bandwidth | 12 GHz |
| Number of Channels | 4 |
| Sample Rate | 40 GSa/s (interleaved), 20 GSa/s (per channel) |
| Memory Depth | Up to 2 Gpts (with memory option) |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
| Rise Time | 33.3 ps |
| Input Impedance | 50 Ω |
| Timebase Range | 20 ps/div to 20 s/div |
| Display | 12.1-inch XGA color display (1024 x 768 resolution) |
| Connectivity / Interface | USB, LAN (LXI), GPIB (optional) |
Keysight Technologies DSO81204A Options:
- DSO81204A - 001 - 2 M (2 channels), 1 M (4 channels) memory upgrade; 64 M (2 channels at 4 GSa/s) or 32 M (4 channels ≤ 2 GSa/s)
- DSO81204A - 002 - EZJIT jitter analysis software (installed at the factory)
- DSO81204A - 003 - High-Speed Serial Data Analysis/Mask Testing with clock recovery and 8b/10b decoding (installed at the factory)
- DSO81204A - 004 - EZJIT Plus jitter analysis software (installed at the factory)
- DSO81204A - 005 - Noise reduction software (installed at the factory)
- DSO81204A - 006 - My Infiniium Integration Package (installed at the factory)
- DSO81204A - 017 - 20 Gb removable hard disk drive; replaces internal hard disk with a removable hard disk
- DSO81204A - 021 - Low-Speed Serial Data Analysis (installed at the factory)
- DSO81204A - 1CM - Rack-mount kit (E2609B)
- DSO81204A - A6J - ANSI Z540-compliant calibration
| Model | DSO81204A |
|---|

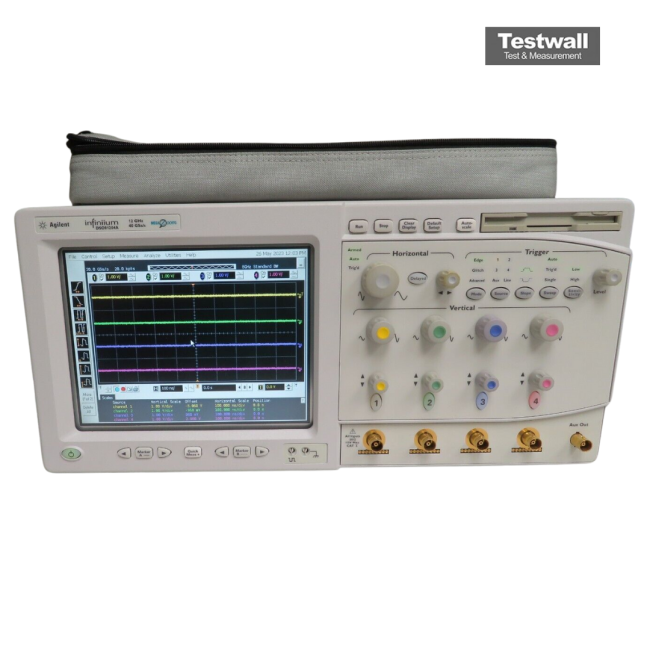

The Keysight (Agilent) DSO81204A Infiniium 80000 Series Oscilloscope features up to 13 GHz bandwidth and a 40 GSa/s real-time sample rate, ensuring accurate high-speed signal analysis for PCI-Express II, SATA II/III, Fibre Channel, and SAS applications.
Its task-oriented Setup Guide and color-graded persistence allow intuitive, detailed waveform analysis, while the Windows-based GUI supports drag-and-drop measurements and FFT functions for in-depth diagnostics.
Testwall can supply the used Keysight (Agilent) DSO81204A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO81204A.
