Keysight (Agilent) DSO9254A
| Attribute | Value |
|---|---|
| Bandwidth | 2.5 GHz |
| Number of Channels | 4 |
| Sample Rate | 20 GSa/s |
| Memory Depth | Up to 1 Gpts (with memory option) |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
| Display | 15-inch XGA color LCD touchscreen |
| Rise Time | 160 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Timebase Range | 5 ps/div to 20 s/div |
| Connectivity/Interface | USB, LAN (LXI), GPIB (optional) |
| Model | DSO9254A |
|---|

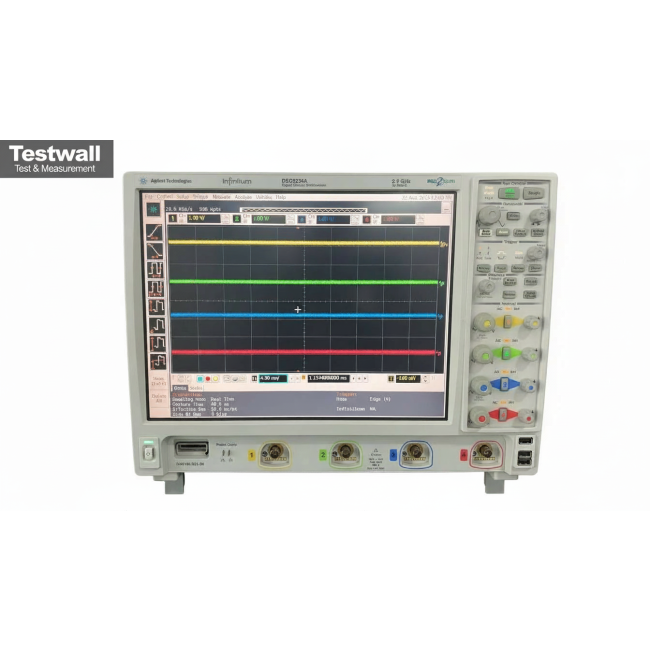

The Keysight (Agilent) DSO9254A is a 2.5 GHz bandwidth oscilloscope with 4 analog channels, offering 20 GSa/s sample rate and 20 Mpts memory per channel, upgradeable to 1 Gpts. It integrates scope, logic analyzer, and protocol analyzer functionality in one compact 26-pound unit with a 15” XGA display.
Ideal for debugging complex systems, the DSO9254A supports I²C, SPI, RS-232, USB 2.0, and more, with customizable software options for jitter analysis, protocol viewing, and compliance testing.
Testwall can supply the used Keysight (Agilent) DSO9254A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO9254A.
