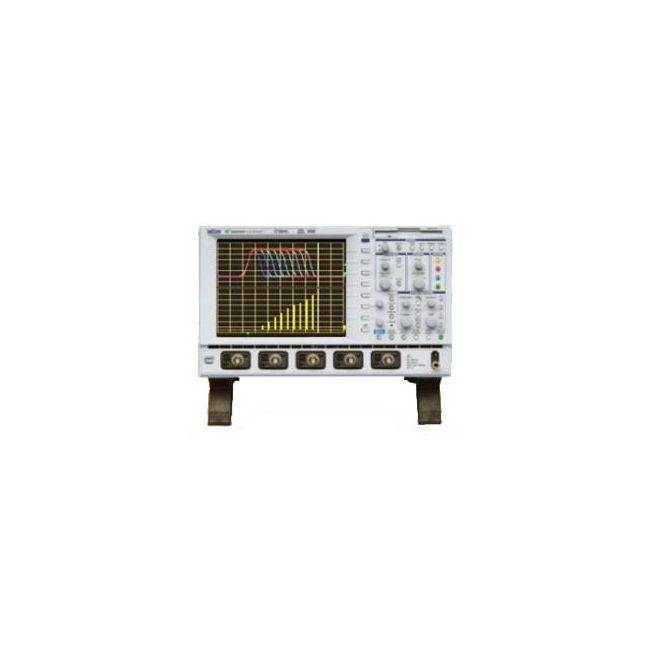

Teladyne LeCroy LT584M
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | 4 GS/s (single channel), 2 GS/s (dual channel) |
| Number of Channels | 4 |
| Memory Depth | 4 Mpts/channel (up to 8 Mpts interleaved) |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 1 V/div |
| Time Base Range | 200 ps/div to 1000 s/div |
| Input Impedance | 50 Ω or 1 MΩ (with 20 pF) |
| Display | 10.4-inch color TFT LCD |
| Trigger Types | Edge, Width, Glitch, TV, Pattern, State, Slew Rate, Dropout, Interval |
Teladyne LeCroy LT584M Options:
- LT584M - Option-M - 1 Mpt/ch Memory Option
- LT584M - Option-L - 4 Mpts/ch Memory Option
- LT584M - WR2-GP02 - Internal Graphics Printer
- LT584M - LAN10BT - 10 Base-T Ethernet LAN Option
- LT584M - PCSLOT - PC Card Slot
- LT584M - PCMEDIA - PC Card Slot including 1 Hard Drive Card and 1 Memory Card
- LT584M - WAVA - Wave Analyzer Analysis Package
- LT584M - JTWA - Jitter Analysis and Wave Analyzer
- LT584M - EMM - Extended Math and Measurement Package
- LT584M - MT01 - ITU G.703 Fully Automated Mask Tester
- LT584M - MT02 - ANSI T1.102 Fully Automated Mask Tester
- LT584M - JTA - Jitter and Timing Analysis Package
- LT584M - DFP - Digital Filter Package
- LT584M - DDM - Disk Drive Measurements
- LT584M - PRML - Supplementary Disk Drive Measurements
- LT584M - PMA1 - Power Measure Analysis Software
- LT584M - ATP - Advanced Trigger Package
- LT584M - SMAP - Surface Map Analysis Software Package
| Model | LT584M |
|---|
The Teledyne LeCroy LT584M Waverunner-2 Series Digital Storage Oscilloscope offers 1 GHz bandwidth across four analog channels with a 2 GS/s sampling rate per channel (4 GS/s in two-channel interleaved mode). It comes with 250 kpts/channel memory, expandable to 8 Mpts in two-channel mode. Featuring <10 ppm clock stability, smart triggers, and an 8.4″ color LCD, it is ideal for precision time-domain analysis.
Designed for advanced engineering applications, the LT584M supports slew-rate and runt triggers, analog persistence, and history mode for comprehensive waveform analysis. Its high timebase accuracy ensures dependable performance in demanding testing environments.
Testwall can supply the used Teledyne LeCroy LT584M, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy LT584M.
