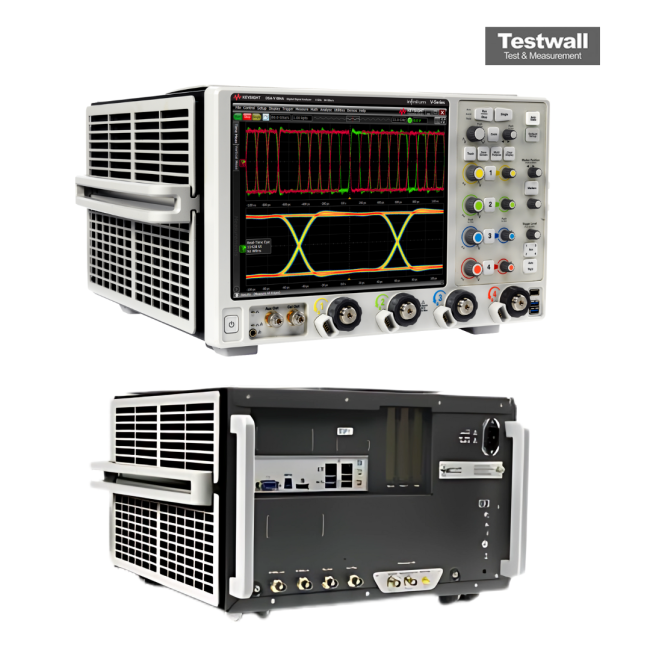

Keysight (Agilent) DSOV084A
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Sample Rate | 20 GSa/s (single channel), 10 GSa/s (all channels) |
| Number of Channels | 4 Analog Channels |
| Memory Depth | Up to 2 Gpts (with memory option) |
| Vertical Resolution | 8-bit (up to 12-bit with high resolution mode) |
| Rise Time | 46 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 15.3-inch color LCD touch screen |
| Operating System | Windows 7 (64-bit) |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
Keysight (Agilent) DSOV084A Options:
- DSOV084A - DSOV000-100 - 100 Mpts/channel memory upgrade
- DSOV084A - DSOV000-200 - 200 Mpts/channel memory upgrade
- DSOV084A - DSOV000-500 - 500 Mpts/channel memory upgrade
- DSOV084A - DSOV000-01G - 1 Gpts/channel memory upgrade
- DSOV084A - DSOV000-02G - 2 Gpts/channel memory upgrade
- DSOV084A - DSOV000-810 - Hardware serial trigger
- DSOV084A - DSOV000-801 - 1 TB removable Solid State Drive (SSD) with Windows 7
- DSOV084A - DSOV000-805 - GPIB card-interface
- DSOV084A - DSOV000-808 - Performance verification and deskew fixture
- DSOV084A - DSOV000-A6J - ANSI Z540 compliant calibration
- DSOV084A - DSOV000-AMG - Calibration + uncertainties + guardbanding (accredited)
- DSOV084A - DSOV13GBW - Bandwidth upgrade to 13 GHz
- DSOV084A - DSOV16GBW - Bandwidth upgrade to 16 GHz
- DSOV084A - DSOV20GBWU - Bandwidth upgrade to 20 GHz
- DSOV084A - DSOV25GBWU - Bandwidth upgrade to 25 GHz
- DSOV084A - DSOV33GBWU - Bandwidth upgrade to 33 GHz
- DSOV084A - N2810A-100 - 50 Mpts/channel to 100 Mpts/channel memory upgrade
- DSOV084A - N2810A-200 - 100 Mpts/channel to 200 Mpts/channel memory upgrade
- DSOV084A - N2810A-500 - 200 Mpts/channel to 500 Mpts/channel memory upgrade
- DSOV084A - N2810A-01G - 500 Mpts/channel to 1 Gpts/channel memory upgrade
- DSOV084A - N2810A-02G - 1 Gpts/channel to 2 Gpts/channel memory upgrade
- DSOV084A - N2119AU - Hardware serial trigger upgrade
- DSOV084A - N2118AU - MSO upgrade (additional 16 digital channels)
- DSOV084A - N2110A-500 - Additional 500 GB removable Solid State Drive (SSD) with Windows 7
- DSOV084A - N2110A-01T - Additional 1 TB removable Solid State Drive (SSD) with Windows 7
- DSOV084A - 82351B - GPIB card-interface
- DSOV084A - N2117A - Stack mount kit option for stacking two frames
- DSOV084A - N5470A - Rack mount kit
| Model | DSOV084A |
|---|
The Keysight (Agilent) DSOV084A Infiniium V-Series oscilloscope features 8 GHz analog bandwidth, 4 analog channels, and up to 80 GSa/s sampling rate with 2 Gpts of acquisition memory. It uses an advanced InP integrated circuit process, offering ultra-low noise (1.04 mVrms at 50 mV/div), low jitter (100 fs), and exceptional signal fidelity with ENOB > 5.5 and SFDR > 50 dBC.
Ideal for high-speed digital, wideband RF, and transient signal analysis, the DSOV084A ensures precise and reliable signal interpretation using PrecisionProbe tools and jitter/trigger analysis features.
Testwall can supply the used Keysight (Agilent) DSOV084A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOV084A.
