Keysight (Agilent)

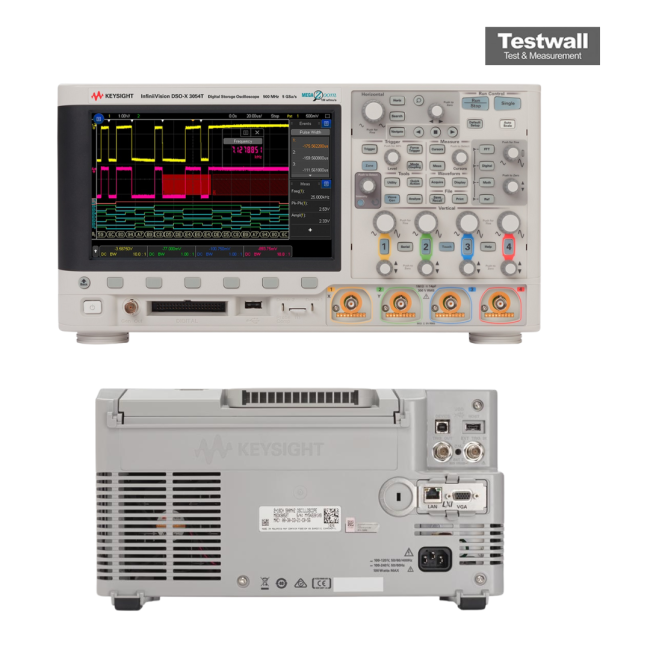

Keysight (Agilent) DSOX3054T
4 Ch 500 MHz Oscilloscope
500 MHz Bandwidth
4 Analog Channels Number of Channels
5 GSa/s Sample Rate
4 Mpts standard (up to 8 Mpts with option) Memory Depth
8.5-inch WVGA (800 x 480) capacitive touch screen Display
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts standard (up to 8 Mpts with option) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
| Triggering | Edge, Pulse Width, Pattern, OR, Rise/Fall Time, Runt, Setup & Hold, Video, Serial (I2C, SPI, UART/RS232) |
| Serial Protocol Analysis | I2C, SPI, UART/RS232 included; CAN, LIN, FlexRay, I2S, MIL-STD-1553 optional |
| Connectivity | USB Host, USB Device, LAN (LXI Core), GPIB (optional) |
Keysight Technologies DSOX3054T Options:
- DSOX3054T - DSOXT3MSO - MSO upgrade: Add 16 digital timing channels
- DSOX3054T - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- DSOX3054T - DSOX3COMP - Computer serial triggering and analysis (RS232/UART)
- DSOX3054T - DSOXT3SENSOR - Sensor triggering and analysis (SENT)
- DSOX3054T - DSOXT3AUTO - Automotive serial triggering and analysis (CAN/CAN-FD/CAN-FD ISO/CAN-dbc/LIN/LIN symbolic)
- DSOX3054T - DSOXT3CXPI - CXPI serial triggering and analysis
- DSOX3054T - DSOX3FLEX - FlexRay serial triggering and analysis
- DSOX3054T - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- DSOX3054T - DSOX3AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- DSOX3054T - DSOXT3UPD - USB-PD serial triggering and analysis
- DSOX3054T - DSOXT3NRZ - User-definable Manchester/NRZ serial triggering and decode
- DSOX3054T - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- DSOX3054T - DSOX3PWR - Power analysis application
- DSOX3054T - DSOXT3FRA - Frequency Response Analysis (FRA)
- DSOX3054T - DSOXT3NFC - Near field communication testing
- DSOX3054T - DSOX3MASK - Mask limit testing
- DSOX3054T - DSOX3VID - Enhanced video/TV application package
- DSOX3054T - DSOXT3APPBNDL - SW application bundle license (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3NFC, DSOXT3CXPI, DSOXT3NRZ, DSOXT3FRA)
- DSOX3054T - DSOXT3B5T102U - Service center 500 MHz to 1 GHz upgrade, 2 ch
- DSOX3054T - DSOXT3B5T104U - Service center 500 MHz to 1 GHz upgrade, 4 ch
- DSOX3054T - DSOXLAN - LAN/VGA connection module
- DSOX3054T - DSOXGPIB - GPIB connection module
| Model | DSOX3054T |
|---|
The Keysight (Agilent) DSOX3054T offers 500 MHz bandwidth, 4 analog channels, and a touch interface with zone trigger. Designed for intuitive signal analysis with enhanced update rate and resolution.
Supports BenchVue integration and advanced math functions with nested capabilities.
Testwall can supply the used Keysight (Agilent) DSOX3054T, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX3054T.
