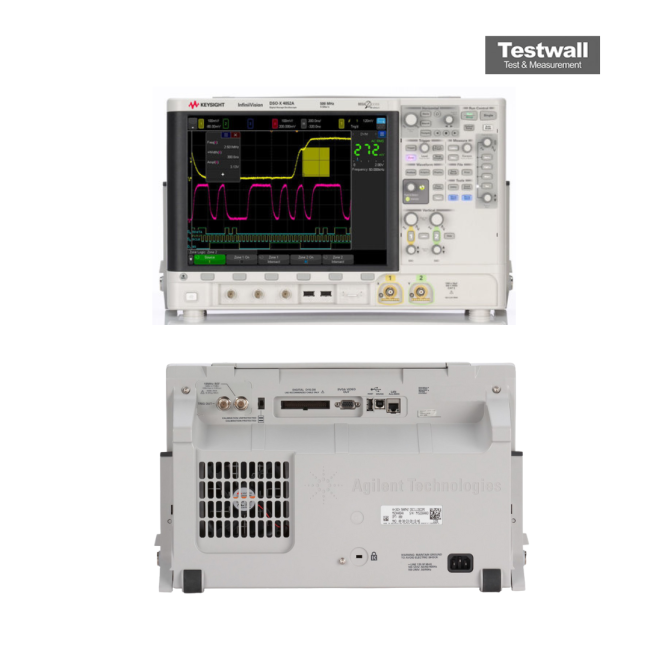

Keysight (Agilent) DSOX4052A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 2 Analog Channels |
| Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts Standard (up to 16 Mpts with option) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Vertical Resolution | 8-bit (up to 12-bit with high resolution mode) |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 2 ns/div to 20 s/div |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Connectivity | USB Host, USB Device, LAN (LXI Core), GPIB (optional) |
Keysight (Agilent) DSOX4052A Options:
- DSOX4052A - DSOX4EMBD - Embedded serial triggering and decode (I²C, SPI)
- DSOX4052A - DSOX4COMP - Computer serial triggering and decode (RS232/UART)
- DSOX4052A - DSOX4USBFL - USB 2.0 Full/Low Speed serial triggering and decode
- DSOX4052A - DSOX4AUTO - Automotive serial triggering and decode (CAN/CAN-dbc/LIN)
- DSOX4052A - DSOX4FLEX - FlexRay serial triggering and decode
- DSOX4052A - DSOX4AUDIO - Audio serial triggering and decode (I²S)
- DSOX4052A - DSOX4AERO - Aerospace and defence serial triggering and decode (MIL-STD 1553, ARINC 429)
- DSOX4052A - DSOX4WAVEGEN2 - Dual-channel WaveGen 20 MHz arbitrary/function generator
- DSOX4052A - DSOXDVM - 3-digit voltmeter (DVM)
- DSOX4052A - DSOX4PWR - Power analysis application
- DSOX4052A - DSOX4MASK - Mask limit testing
- DSOX4052A - DSOX4VID - Enhanced video/TV application package
- DSOX4052A - DSOX4FPGAX - FPGA dynamic probe option for Xilinx
- DSOX4052A - DSOX4USBSQ - USB 2.0 signal quality test option
- DSOX4052A - DSOXEDK - Education training kit
- DSOX4052A - DSOXPERFMSO - 4000 X-Series oscilloscope MSO upgrade (16 digital channels)
- DSOX4052A - DSOX4B3T52U - Bandwidth upgrade 350 MHz to 500 MHz, 2 ch (License Only)
- DSOX4052A - DSOX4B2T32U - Bandwidth upgrade 200 MHz to 350 MHz, 2 ch (Service center)
- DSOX4052A - DSOX4B2T52U - Bandwidth upgrade 200 MHz to 500 MHz, 2 ch (Service center)
| Model | DSOX4052A |
|---|
The Keysight (Agilent) DSOX4052A Oscilloscope offers 500 MHz bandwidth and 5 GSa/s sample rate, with advanced features like a 12.1-inch capacitive touchscreen and InfiniiScan Zone touch triggering. Its MegaZoom IV smart memory, 1 million waveforms/sec update rate, and segmented memory enhance analysis capability. It integrates 5 instruments: oscilloscope, logic analyzer, protocol analyzer, dual-channel WaveGen, and DVM.
Ideal for engineers needing fast, detailed signal analysis, the DSOX4052A’s flexible input impedance, full upgradability, and versatile trigger system support broad applications in R&D and diagnostics.
Testwall can supply the used Keysight (Agilent) DSOX4052A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX4052A.
