Keysight (Agilent) DSAX92504Q
Infiniium High-Performance Oscilloscope: 25GHz Oscilloscope
25 GHz Bandwidth
80 GSa/s Sample Rate
4 Number of Channels
8-bit (up to 10-bit with enhanced resolution) Vertical Resolution
Up to 2 Gpts (gigapoints) per channel Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 25 GHz |
| Sample Rate | 80 GSa/s |
| Number of Channels | 4 |
| Vertical Resolution | 8-bit (up to 10-bit with enhanced resolution) |
| Memory Depth | Up to 2 Gpts (gigapoints) per channel |
| Rise Time | 14 ps |
| Input Impedance | 50 Ohm |
| Timebase Range | 5 ps/div to 1 ks/div |
| Display | 15-inch XGA color touch display |
| Operating System | Windows 10 (64-bit) |
Keysight (Agilent) DSAX92504Q Options:
- DSAX92504Q - 001 - PrecisionProbe - Characterize and compensate for loss from your input to your oscilloscope to 33 GHz
- DSAX92504Q - 827 - PrecisionProbe Advanced - Characterize and compensate for loss from your input to your oscilloscope to 63 GHz
- DSAX92504Q - 009 - InfiniiScan - Trigger on unique events including using zones on multiple channels and non-monotonic edges
- DSAX92504Q - 002 - EZJIT - Basic jitter analysis with measurement trending, time interval error and many more measurements
- DSAX92504Q - 004 - EZJIT Plus - Get in-depth analysis of your jitter by decomposing your jitter
- DSAX92504Q - 070 - EZJIT Complete - Understand your full real time by decomposing the noise that is impacting your margins
- DSAX92504Q - 003 - Serial Data Analysis - Recover clocks to 120 Gb/s and view real-time eyes. Run mask testing
- DSAX92504Q - 012 - Serial Data Equalization - Properly emulate your design equalizers including FFE, CTLE and DFE
- DSAX92504Q - 013 - InfiniiSim Basic - Waveform transformation software to remove or add three elements in your link
- DSAX92504Q - 014 - InfiniiSim Advanced - Waveform transformation software to remove or add 27 elements in your link
- DSAX92504Q - 010 - User-Defined Function - Create custom functions that run live on your oscilloscope with MathWorks MATLAB software
- DSAX92504Q - 061 - MATLAB Basic - Purchase an introductory MATLAB software package to acquire scope measurements into the MATLAB environment
- DSAX92504Q - 062 - MATLAB Standard - Purchase a typical MATLAB software package, signal processing and filter design toolboxes on the same PO as your scope
- DSAX92504Q - 065 - User-Defined Function with MATLAB - Create and execute custom functions that run live on your oscilloscope. Includes MATLAB standard software (Option 062)
- DSAX92504Q - 040 - User-Defined Application - Fully customizable automated application for your Infiniium oscilloscope
- DSAX92504Q - 112 - PCI Express Gen 1/2/3/4 - Guarantee your PCI Express Gen4 designs
- DSAX92504Q - 077 - HDMI 2.0 Compliance - Quickly verify and debug your high-definition multimedia interface
- DSAX92504Q - 043 - SAS-2 Compliance - Automatically execute SAS electrical checklist tests at each of the IT, CT, IR, and CR interface points
- DSAX92504Q - 076 - SAS-3 Compliance - Automatically execute SAS electrical checklist tests at each of the IT, CT, IR, and CR interface points
- DSAX92504Q - 045 - DisplayPort Source Compliance - Verify and debug your DisplayPort interface designs for sink and source ICs, motherboard systems, computers, and graphics cards
- DSAX92504Q - 031 - DDR1 Verification - Save time with automated testing based on JEDEC DDR1 and LPDDR1 specifications
- DSAX92504Q - 032 - DDR3 Verification - Save time with automated testing based on JEDEC DDR3 specifications
- DSAX92504Q - 033 - DDR2 Verification - Save time with automated testing based on JEDEC DDR2 and LPDDR2 specifications
- DSAX92504Q - 074 - 10GBASE-KR Compliance - Test to IEEE 802.3 clause 49 over a single backplane lane
- DSAX92504Q - 035 - MIPI D-PHY Verification - Execute D-PHY electrical checklist tests for CSI and DSI architectures
- DSAX92504Q - 047 - MIPI M-PHY Verification - Execute M-PHY electrical tests
- DSAX92504Q - 060 - Energy Efficient Ethernet - Debug your 1000BASE-T, 100BASE-TX, and 10BASE-T Ethernet designs
- DSAX92504Q - 036 - 10-GBASE-T Compliance - Coverage of the 10GBASE-T transmitter electrical specifications as described in section 55.5.3 of IEEE 802.3an-2006
- DSAX92504Q - 030 - XAUI Compliance - XAUI validation with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO support
- DSAX92504Q - 038 - SATA 6G Compliance - Automated compliance testing for 1.5-Gbps, 3.0-Gbps and 6.0-Gbps SATA, and eSATA transmitter (PHY/TSG/OOB tests)
- DSAX92504Q - 029 - USB 2.0 Compliance - USB-IF recognized compliance for low/full and low/full/high-speed USB automated electrical test
- DSAX92504Q - 041 - USB 3.0 Compliance - Validate and debug your USB 3.0 silicon, host, hub or device
- DSAX92504Q - 046 - USB HSIC - Validate and debug USB high speed inter-connect devices
- DSAX92504Q - 054 - MHL Compliance - Validates MHL source designs as found in portable products such as cell phones and tables according to the MHL 1.2 standard
- DSAX92504Q - 059 - Thunderbolt Compliance - Measure the transmitter with the accuracy of the 90000 Q-Series
- DSAX92504Q - 049 - PCI Express Gen3 Protocol - Time-correlated views of physical and transaction layer errors. 128/130-bit decoding on Gen3 traffic
- DSAX92504Q - 048 - Ethernet 10GBASE-KR Protocol - Full protocol analysis for 10GBASE-KR 64/66-bit decoder
- DSAX92504Q - 018 - SATA/SAS Protocol - Simplify the validation of your SATA/SAS designs with the full-capability protocol viewer for 3 G, 6 G and 12 Gbit/s
- DSAX92504Q - 051 - DigRF v4 Protocol - Extend your scope capability with DigRF v4 triggering and decode
- DSAX92504Q - 007 - I2C/SPI Protocol - Extend your scope capability with I2C and SPI triggering and decode
- DSAX92504Q - 015 - RS232/UART Protocol - Easily view the information sent over an RS-232, RS-422, RS-485 or other UART serial buses
- DSAX92504Q - 016 - USB 2.0 Protocol - Trigger on and quickly view USB packets, payload, header and detailed information
- DSAX92504Q - 017 - PCI Express Gen1 and 2 Protocol - Quickly view packets, payload, header, and detailed information
- DSAX92504Q - 019 - MIPI D-PHY Protocol - Easily view the information sent over MIPI serial buses
- DSAX92504Q - 063 - CAN/FlexRay Protocol - View both protocol-layer information and physical-layer signal characteristics for CAN, LIN, CAN-FD, and FlexRay buses
- DSAX92504Q - 042 - JTAG Protocol - Eliminate the difficult task of manually determining JTAG TAP controller states, instruction, and data register decode
- DSAX92504Q - 056 - SVID Protocol - Decode and search on SVID technology
- DSAX92504Q - 052 - Unipro Decode - Decode at the protocol level
- DSAX92504Q - DSOX90000-050 - 50 Mpts/ch Memory Upgrade
- DSAX92504Q - DSOX90000-100 - 100 Mpts/ch Memory Upgrade
- DSAX92504Q - DSOX90000-200 - 200 Mpts/ch Memory Upgrade
- DSAX92504Q - DSOX90000-500 - 500 Mpts/ch Memory Upgrade
- DSAX92504Q - DSOX90000-01G - 1 Gpt/ch Memory Upgrade
- DSAX92504Q - DSOX90000-02G - 2 Gpts/ch Memory Upgrade
- DSAX92504Q - DSOX90000-A6J - ANSI Z540 Compliant Calibration
- DSAX92504Q - DSOX90000-1A7 - ISO17025 Calibration
- DSAX92504Q - DSOX90000-820 - DVD RW
- DSAX92504Q - DSOX90000-808 - Performance Verification De-skew Fixture for InfiniiMax III Probe
- DSAX92504Q - DSOX90000-1CM - Rackmount Kit Option
| Model | DSAX92504Q |
|---|

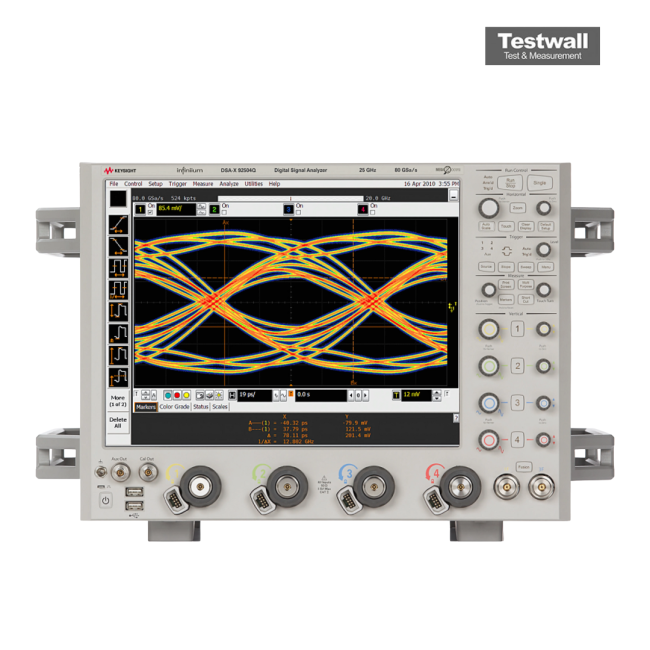

The Keysight (Agilent) DSAX92504Q is a premium real-time oscilloscope delivering 25 GHz bandwidth and 80 GSa/s sampling rate across four channels. It ensures outstanding signal fidelity and minimal noise, making it ideal for high-speed digital applications. This unit also features advanced protocol decode and precise triggering options tailored for deep compliance analysis.
Perfectly suited for PCIe, USB, and memory bus testing, the DSAX92504Q provides engineers with dependable accuracy and efficiency for next-gen electronic designs.
Testwall can supply the used Keysight (Agilent) DSAX92504Q, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSAX92504Q.
