Keysight (Agilent)

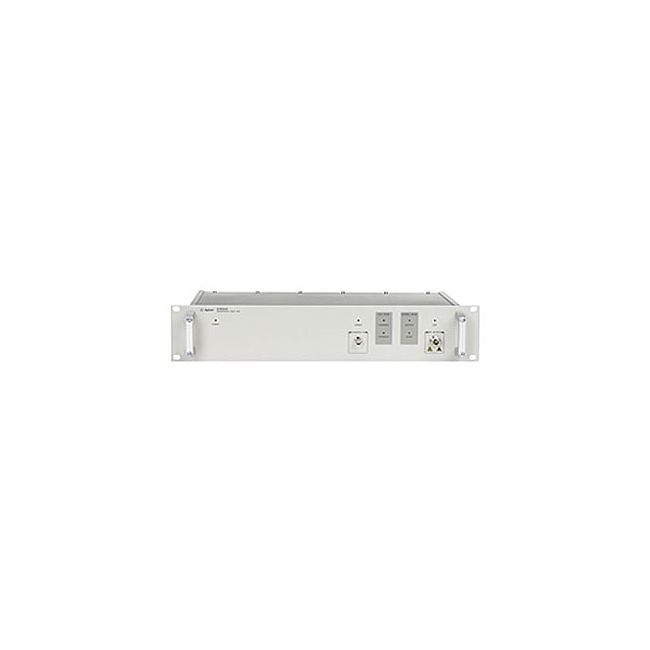

Keysight (Agilent) E1852A Bluetooth Test Set
Bluetooth? Test Set
2.402 GHz to 2.480 GHz (Bluetooth ISM Band) Frequency Range
Bluetooth 1.1, 1.2, 2.0 + EDR Supported Bluetooth Versions
GFSK, π/4-DQPSK, 8DPSK modulation testing support Modulation Analysis
-90 dBm to +10 dBm Output Power Range
Better than -70 dBm at 0.1% BER Receiver Sensitivity
| Attribute | Value |
|---|---|
| Frequency Range | 2.402 GHz to 2.480 GHz (Bluetooth ISM Band) |
| Supported Bluetooth Versions | Bluetooth 1.1, 1.2, 2.0 + EDR |
| Modulation Analysis | GFSK, π/4-DQPSK, 8DPSK modulation testing support |
| Output Power Range | -90 dBm to +10 dBm |
| Receiver Sensitivity | Better than -70 dBm at 0.1% BER |
| Interface/Connectivity | GPIB, LAN (IEEE 802.3), RS-232 |
| Form Factor | VXI (VMEbus eXtensions for Instrumentation) mainframe compatible module |
| Operating Temperature | 0°C to 55°C |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Measurement Capabilities | Transmit power, frequency deviation, carrier frequency offset, modulation index, and BER testing |
| Model | E1852A |
|---|
The Keysight (Agilent) E1852A Bluetooth Test Set supports standard protocol testing, evaluating transmitter power, modulation, frequency errors, and drift.
It includes RF analysis and generation functions, with clock/data outputs for module calibration and supports receiver sensitivity testing in all modes.
Testwall can supply the used Keysight (Agilent) E1852A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E1852A.
