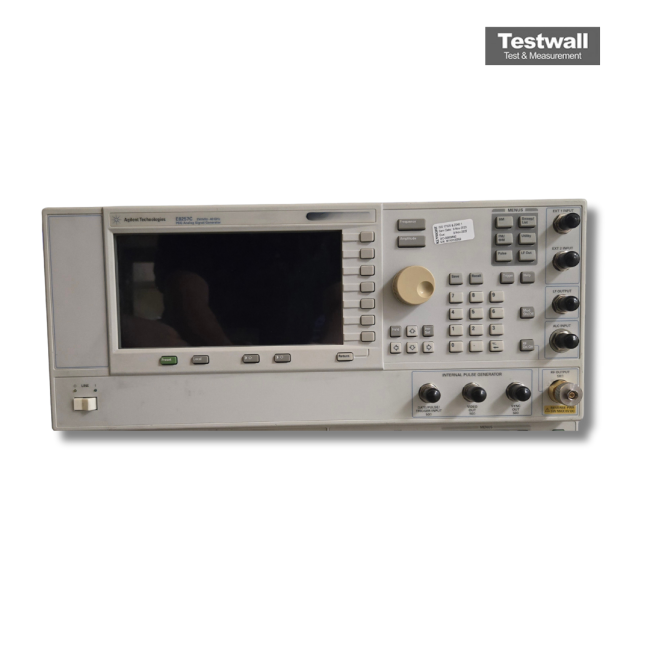

Keysight (Agilent) E8257C
| Attribute | Value |
|---|---|
| Frequency Range | 250 kHz to 40 GHz |
| Modulation | AM, FM, ΦM, pulse |
| Frequency Resolution | 0.001 Hz |
| Interfaces | GPIB, LAN, RS-232 |
| Output Power | -20 to +13 dBm (depending on configuration) |
| Level Accuracy | ±0.8 dB at 2 to 20 GHz, ±0.9 dB at 20 to 40 GHz (spec.) |
| Sweep Modes | step sweep, list mode, ramp sweep |
| RF Output Connector | 3.5 mm male; 2.4 mm male (depending on configuration) |
Available configurations
| Model | Frequency range | Configuration |
| E8257C-520 | 250 kHz to 20 GHz | Analog signal generator |
| E8257C-540 | 250 kHz to 40 GHz | Analog signal generator |
Keysight (Agilent) E8257C-540 Options:
Options available for the Keysight (Agilent) PSG analog signal generator (E8257C). Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- E8257C - UNT - AM, FM and phase modulation
- E8257C - UNU - Pulse modulation
- E8257C - UNW - Narrow pulse modulation
- E8257C - 007 - Analog ramp sweep
- E8257C - 1E1 - Step attenuator
- E8257C - 1EA - High output power
- E8257C - 1ED - Type-N (f) RF output connector
- E8257C - 1EH - Improved harmonics below 2 GHz
- E8257C - 1EM - RF output moved to rear panel
- E8257C - UNR - Enhanced phase noise
- E8257C - 1CM - Rack mount kit
- E8257C - 1CN - Front handle kit
- E8257C - 1CP - Rack mount kit with handles
The Keysight (Agilent) E8257C-540 Analog PSG delivers frequency coverage from 250 kHz to 40 GHz, ensuring precise testing at high frequencies. It features micro-Hz tuning resolution, exceptional level fidelity, and wideband sweep capabilities with CW resolution of 0.001 Hz and sweep resolution of 0.01 Hz. Standard output power reaches up to +16 dBm with optional high-output versions available.
Engineered for rigorous RF testing, the E8257C-540 supports multi-sweep modes, offers low phase noise, and delivers exact amplitude control for critical measurements.
Testwall can supply the used Keysight (Agilent) E8257C-540, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8257C-540.
Options and configurations
- Frequency Range: 250 kHz to 40 GHz (Opt. 540)
- Output Power: -20 to +13 dBm (Opt. 520), +9 dBm (Opt. 540); -135 dBm with Opt. 1E1
- Sweep Modes: step sweep, list mode, ramp sweep (Opt. 007)
- RF Output Connector: 3.5 mm male (Opt. 520); 2.4 mm male (Opt. 540)
