Keysight (Agilent)

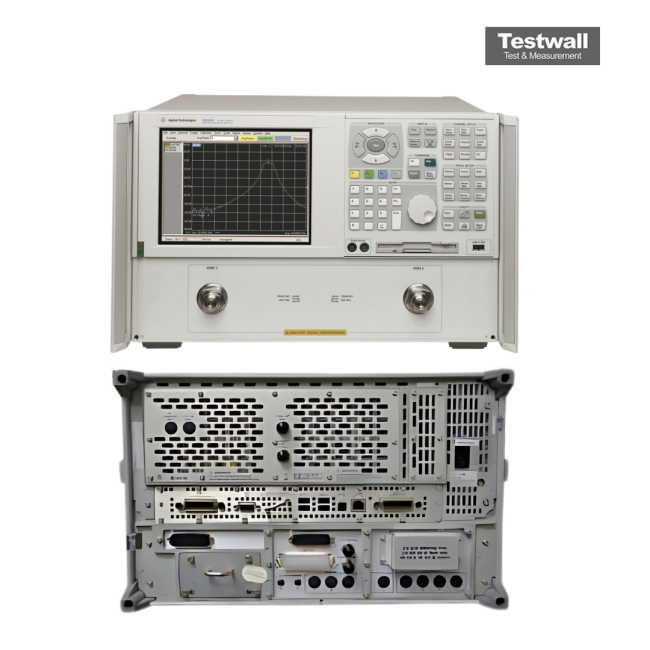

Keysight (Agilent) E8363A
Vector Network Analyser.
10 MHz to 40 GHz Frequency Range
2-Port Number of Ports
Up to 118 dB Dynamic Range
-85 dBm to +10 dBm Output Power Range
0.004 dB RMS at 10 Hz IF Bandwidth Trace Noise
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 40 GHz |
| Number of Ports | 2-Port |
| Dynamic Range | Up to 118 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Trace Noise | 0.004 dB RMS at 10 Hz IF Bandwidth |
| Connector Type | 2.4 mm (female) |
| IF Bandwidth | 1 Hz to 40 kHz |
| Measurement Parameters | S-Parameters, Impedance, Admittance, Group Delay, Phase |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Keysight Technologies E8363A Options:
- E8363A - 010 - Time Domain
- E8363A - 014 - Configurable Test Set (Extended Configuration, Source Access, Receiver)
- E8363A - UNL - Extended Power Range and Bias-Tees
| Model | E8363A |
|---|
The Keysight (Agilent) E8363A Vector Network Analyzer offers frequency coverage from 45 MHz to 40 GHz with exceptional dynamic range up to 138 dB using direct receiver access.
It supports TRL/LRM calibration, source attenuators, bias-tees, and direct receiver access, ideal for waveguide, on-wafer, and in-fixture measurements.
Testwall can supply the used Keysight (Agilent) E8363A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8363A.
