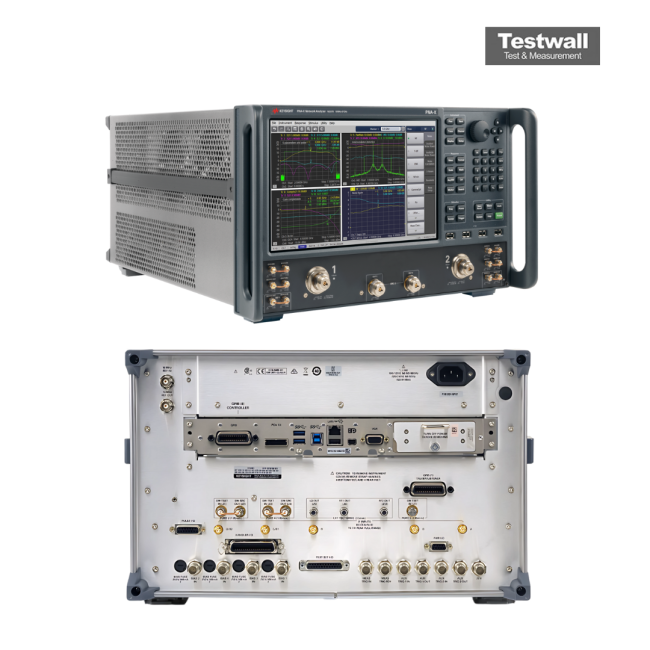

Keysight (Agilent) N5241B
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 13.5 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 123 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Trace Noise (Magnitude) | 0.001 dB RMS |
| Test Port Connector Type | 3.5 mm (f) |
| Measurement Speed | Up to 40,000 points per second |
| System Interface | LAN (LXI Core 2011), USB, GPIB |
| Display | 10.4-inch XGA color LCD touchscreen |
| Power Requirements | 100–240 VAC, 50/60 Hz, 350 W maximum |
Keysight (Agilent) N5241B Options:
- N5241B - 029 - Adds hardware and firmware for high-accuracy noise figure measurements (requires option 219, 222, 224, 419, 422, or 423)
- N5241B - 080 - Recommended internal second source for 4-port configurations
- N5241B - 201 - 2-port standard test set (includes six front-panel access loops) and power range
- N5241B - 217 - 2-port standard test set (includes six front-panel access loops), power range, and source and receiver attenuators (extended power range)
- N5241B - 219 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), and bias-tees
- N5241B - 222 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, and mechanical switches
- N5241B - 224 - 2-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, mechanical switches, and bias tees
- N5241B - 401 - 4-port standard test set (includes twelve front-panel access loops), power range, and an internal second source
- N5241B - 417 - 4-port standard test set (includes twelve front-panel access loops), power range, internal second source, and source and receiver attenuators (extended power range)
- N5241B - 419 - 4-port standard test set (includes twelve front-panel access loops), power range, internal second source, source and receiver attenuators (extended power range), and bias-tees
- N5241B - 422 - 4-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, and mechanical switches
- N5241B - 423 - 4-port standard test set (includes six front-panel access loops), power range, source and receiver attenuators (extended power range), internal second source, a combiner, mechanical switches, and bias tees
| Model | N5241B |
|---|
The Keysight (Agilent) N5241B PNA-X is a premier vector network analyzer combining two internal signal sources, pulse modulators/generators, signal combiner, S-parameter and noise receivers, switches, and RF access points. This integrated test engine supports linear and nonlinear device measurements through a single connection, streamlining microwave component testing with precision and flexibility.
Its multitouch interface and advanced error correction allow accurate testing of amplifiers, mixers, and converters with minimal setup, replacing an entire rack of equipment.
Testwall can supply the used Keysight (Agilent) N5241B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5241B.
