Keysight (Agilent) E8802A
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Number of Ports | 2-Port |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -85 dBm to +20 dBm |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, group delay |
| IF Bandwidth | 1 Hz to 40 kHz |
| Connector Type | Type-N (50 Ohm) |
| Display | 10.4-inch color LCD touchscreen |
| Data Points per Sweep | Up to 16,001 points |
| Interface/Connectivity | GPIB, USB, LAN (LXI compliant) |
Keysight Technologies E8802A Options:
- E8802A - 010 - Time-domain
- E8802A - 014 - Configurable test set
- E8802A - 1E1 - Step attenuator (70 dB) for extended power range (-85 to +10 dBm)
- E8802A - 1E5 - High-stability frequency reference (±1 ppm, -10°C to 70°C)
| Model | E8802A |
|---|

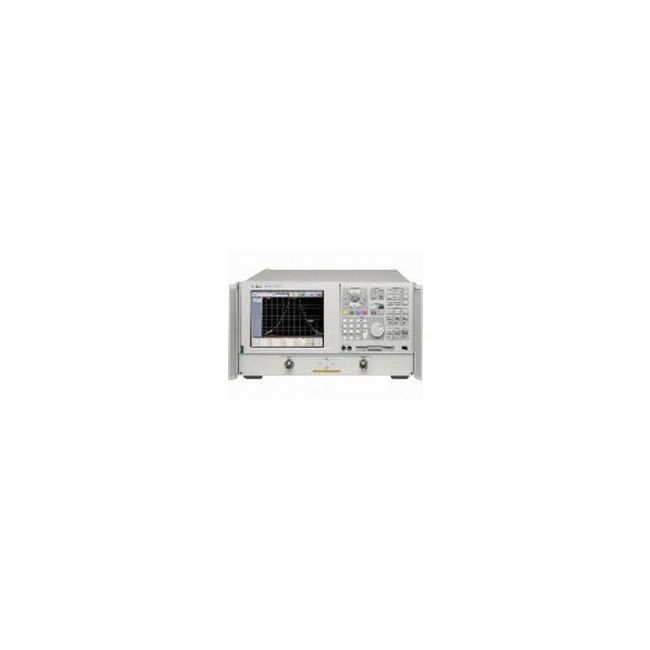

The Keysight (Agilent) E8802A PNA Network Analyzer spans 300 kHz to 6 GHz with two test ports and three measurement receivers for superior performance in mixer and converter testing. Its dynamic range reaches 128 dB, with a fast sweep time and maximum output of +10 dBm, enabling high-accuracy and efficient signal analysis. Features include code compatibility with RF PNA and advanced automation tools.
Designed for precision, it delivers trace noise under 0.002 dB and supports high-speed measurement with 50 kHz bandwidth, making it ideal for complex RF applications.
Testwall can supply the used Keysight (Agilent) E8802A PNA Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E8802A PNA Network Analyzer.
