Keysight (Agilent)

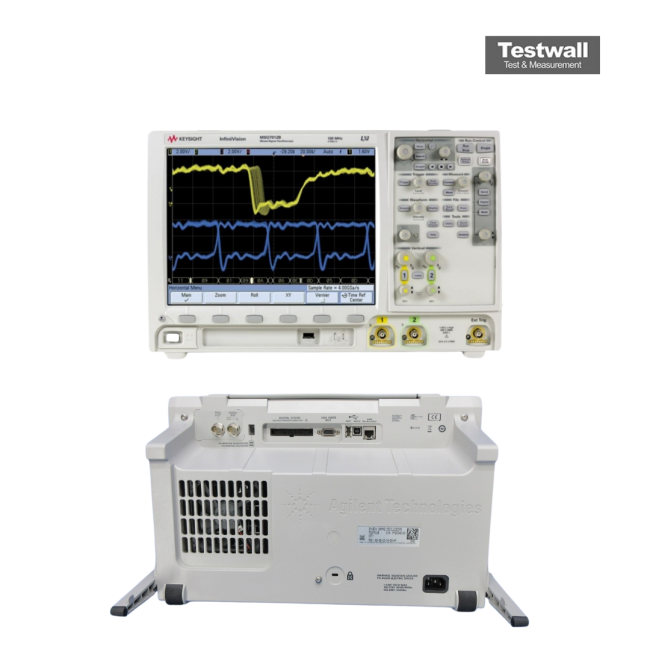

Keysight (Agilent) MSO7012B
Mixed Signal Oscilloscope, 100 MHz 2 + 16 Ch., 2 GSa/s
100 MHz Bandwidth
2 Analog Channels
16 Digital Channels
2 GSa/s Sample Rate
8 Mpts (standard), up to 16 Mpts with memory upgrade Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Analog Channels | 2 |
| Digital Channels | 16 |
| Sample Rate | 2 GSa/s |
| Memory Depth | 8 Mpts (standard), up to 16 Mpts with memory upgrade |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Timebase Range | 2 ns/div to 50 s/div |
| Display | 8.5-inch XGA color display (1024 x 768) |
| Waveform Update Rate | Up to 100,000 waveforms per second |
Keysight (Agilent) MSO7012B Options:
- MSO7012B - 002 - Alternative standard probe: N2871A (10:1 150 MHz passive probe with probe ID) in place of default 10074D
- MSO7012B - SEC - Secure Environment Mode - Provides compliance with National Industrial Security Program Operating Manual (NISPOM) Chapter 8 requirements (factory-installed option only for new purchase)
- MSO7012B - A6J - ANSI Z540 compliant calibration
- MSO7012B - AMS - CAN/LIN automotive triggering and decode (4 and 4+16 channel models only)
- MSO7012B - LSS - I2C/SPI serial decode option (for 4/4+16 channel models only)
- MSO7012B - 232 - RS-232/UART triggering and decode (4 and 4+16 channel models only)
- MSO7012B - SND - I2S Triggering and Decode (4 and 4+16 channel models only)
- MSO7012B - FLX - FlexRay Measurements (4 and 4+16 channel models only)
- MSO7012B - 553 - MIL-STD 1553 Triggering and Decode (4 and 4+16 channel models only)
- MSO7012B - SGM - Segmented memory
- MSO7012B - LMT - Mask limit testing
- MSO7012B - ABA - Printed user's guide in English
- MSO7012B - AB2 - Printed user's guide in Simplified Chinese
- MSO7012B - ABJ - Printed user's guide in Japanese
| Model | MSO7012B |
|---|
The Keysight (Agilent) MSO7012B Mixed Signal Oscilloscope offers a 100 MHz bandwidth, 2 GSa/s sample rate, and 8 Mpts memory depth across 2 analog and 16 digital channels. Its 12.1” XGA display with 256 intensity levels ensures superb signal clarity.
Ideal for signal visibility and debugging, it supports core-assisted FPGA debug for Xilinx/Altera, segmented memory, and offline PC-based analysis.
Testwall can supply the used Keysight (Agilent) MSO7012B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSO7012B.
