Keysight (Agilent) MSOV204A
20 GHz, 4 Analog Channel plus 16 Digital Channels Infiniium Oscilloscope
20 GHz Bandwidth
4 Analog Channels Number of Channels
80 GSa/s Sample Rate
50 Mpts per channel (standard), up to 2 Gpts with option Memory Depth
8-bit ADC (up to 10-bit with high resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 80 GSa/s |
| Memory Depth | 50 Mpts per channel (standard), up to 2 Gpts with option |
| Vertical Resolution | 8-bit ADC (up to 10-bit with high resolution mode) |
| Rise Time | 17.5 ps |
| Display | 15.6-inch capacitive touch screen, 1920 x 1080 resolution |
| Input Impedance | 50 Ω or 1 MΩ |
| Connectivity | USB, LAN (LXI), GPIB (optional), DisplayPort |
| Operating System | Windows 10 IoT Enterprise |
Keysight Technologies MSOV204A Options:
- MSOV204A - DSOV000-100 - 100 Mpts/channel memory upgrade
- MSOV204A - DSOV000-200 - 200 Mpts/channel memory upgrade
- MSOV204A - DSOV000-500 - 500 Mpts/channel memory upgrade
- MSOV204A - DSOV000-01G - 1 Gpts/channel memory upgrade
- MSOV204A - DSOV000-02G - 2 Gpts/channel memory upgrade
- MSOV204A - DSOV000-810 - Hardware serial trigger upgrade
- MSOV204A - DSOV000-801 - 1 TB removable Solid State Drive (SSD) with Windows 7
- MSOV204A - DSOV000-805 - GPIB card-interface
- MSOV204A - DSOV000-808 - Performance verification and deskew fixture
- MSOV204A - N2117A - Stack mount kit option for stacking two frames
- MSOV204A - N5470A - Rack mount kit
- MSOV204A - DSOV000-A6J - ANSI Z540-1 compliant calibration
- MSOV204A - DSOV000-AMG - ACLASS Accreditation ANSI-ASQ National Accreditation Board, USA (calibration + uncertainties + guardbanding)
- MSOV204A - DSOV13GBW - Bandwidth upgrade to 13 GHz
- MSOV204A - DSOV16GBW - Bandwidth upgrade to 16 GHz
- MSOV204A - DSOV20GBWU - Bandwidth upgrade to 20 GHz
- MSOV204A - DSOV25GBWU - Bandwidth upgrade to 25 GHz
- MSOV204A - DSOV33GBWU - Bandwidth upgrade to 33 GHz
- MSOV204A - N2810A-100 - 50 Mpts/channel to 100 Mpts/channel memory upgrade
- MSOV204A - N2810A-200 - 100 Mpts/channel to 200 Mpts/channel memory upgrade
- MSOV204A - N2810A-500 - 200 Mpts/channel to 500 Mpts/channel memory upgrade
- MSOV204A - N2810A-01G - 500 Mpts/channel to 1 Gpts/channel memory upgrade
- MSOV204A - N2810A-02G - 1 Gpts/channel to 2 Gpts/channel memory upgrade
- MSOV204A - N2119AU - Hardware serial trigger upgrade
- MSOV204A - N2118AU - MSO upgrade
- MSOV204A - N8823A-1FP - EZJIT Complete jitter analysis (fixed license)
- MSOV204A - N8823A-1TP - EZJIT Complete jitter analysis (floating transportable license)
- MSOV204A - N5400A-1FP - EZJIT Plus jitter analysis (fixed license)
- MSOV204A - N5400A-1TP - EZJIT Plus jitter analysis (floating transportable license)
- MSOV204A - E2681A-1FP - EZJIT jitter analysis (fixed license)
- MSOV204A - E2681A-1TP - EZJIT jitter analysis (floating transportable license)
- MSOV204A - N8832A-001 - Frequency domain analysis
- MSOV204A - E2688A-1FP - High-speed SDA and clock recovery (fixed license)
- MSOV204A - E2688A-1TP - High-speed SDA and clock recovery (floating transportable license)
- MSOV204A - N5414B-1FP - InfiniiScan software triggering (fixed license)
- MSOV204A - N5414B-1TP - InfiniiScan software triggering (floating transportable license)
- MSOV204A - N5465A-1FP - InfiniiSim advanced signal de-embedding (fixed license)
- MSOV204A - N5465A-1TP - InfiniiSim advanced signal de-embedding (floating transportable license)
- MSOV204A - N5465A-3FP - InfiniiSim basic signal de-embedding (fixed license)
- MSOV204A - N5465A-3TP - InfiniiSim basic signal de-embedding (floating transportable license)
- MSOV204A - N8831A-001 - MATLAB - Basic digital analysis
- MSOV204A - N8831A-002 - MATLAB - Standard digital analysis
- MSOV204A - N8822A-1FP - MultiScope combining two oscilloscopes (fixed license)
- MSOV204A - N8822A-1TP - MultiScope combining two oscilloscopes (floating transportable license)
- MSOV204A - N2809A-1FP - PrecisionProbe calibration (fixed license)
- MSOV204A - N2809A-1TP - PrecisionProbe calibration (floating transportable license)
- MSOV204A - N5461A-1FP - Serial data equalization (fixed license)
- MSOV204A - N5461A-1TP - Serial data equalization (floating transportable license)
- MSOV204A - 64996A-1FP - Spectrum visualizer (fixed license)
- MSOV204A - 64996A-1TP - Spectrum visualizer (floating transportable license)
- MSOV204A - N5430A-1FP - User-defined function (fixed license)
- MSOV204A - N5430A-1TP - User-defined function (floating transportable license)
| Model | MSOV204A |
|---|

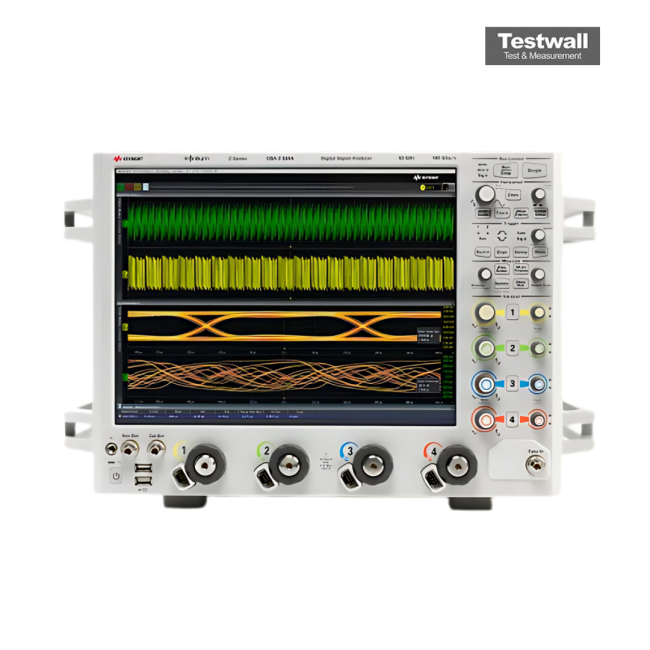

The Keysight MSOV204A Infiniium V-Series oscilloscope features 20 GHz analog bandwidth, 4 analog and 16 digital channels, 80 GSa/s sample rate, and 2 Gpts memory for long signal captures.
It delivers low noise (1.54 mVrms), a jitter floor of 100 fs, ENOB >5.5, SFDR >50 dBC, and PrecisionProbe tools.
Testwall can supply the used Keysight MSOV204A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight MSOV204A.
