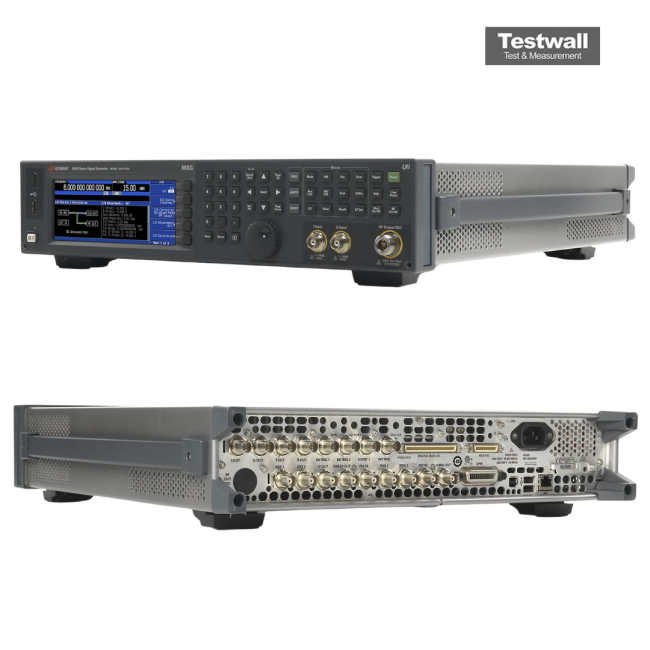

Keysight (Agilent) N5182B
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 3 GHz |
| Frequency Resolution | 0.001 Hz |
| Sweep Modes | step sweep, list mode |
| Timebase Aging | < ±1 × 10⁻⁷ per year |
| RF Output Connector | Type-N female |
| Output Power | -144 to +18 dBm at 10 MHz to 3 GHz |
| SSB Phase Noise | -134 dBc/Hz at 1 GHz, 20 kHz offset (typ.) |
| Modulation | AM, FM, ΦM, pulse, I/Q (depending on configuration) |
| Level Accuracy | ±0.6 dB (spec.) at 5 MHz to 6 GHz, max. to -60 dBm |
| Harmonics | < -35 dBc (spec.) at 9 kHz to 3 GHz |
| Non-Harmonics | -75 to -87 dBc (spec.), >10 kHz offset |
| Switching Speed | ≤ 1.15 ms (typ.) |
| Interfaces | GPIB, LAN (LXI), USB |
| Dimensions | 426 × 88 × 489 mm |
| Weight | 15.9 kg |
Available configurations
| Model | Frequency range | Configuration |
| N5182B-503 | 9 kHz to 3 GHz | Vector signal generator |
| N5182B-506 | 9 kHz to 6 GHz | Vector signal generator |
Keysight Technologies N5182B-503 Options:
- N5182B-503 - 503 - Frequency range 9 kHz to 3 GHz
- N5182B-503 - 1EA - High output power
- N5182B-503 - 1EL - Differential I/Q outputs
- N5182B-503 - 1EM - Rear panel RF output and I/Q inputs
- N5182B-503 - 1EQ - Extended low power range (down to -127 dBm)
- N5182B-503 - 1ER - Extended frequency reference input (1 to 50 MHz)
- N5182B-503 - 003 - Digital baseband output (requires N5102A)
- N5182B-503 - 004 - Digital baseband input (requires N5102A)
- N5182B-503 - 006 - Removable 8 GB solid state memory (SD card) security option
- N5182B-503 - 009 - 30 GB internal solid-state drive
- N5182B-503 - 012 - Phase coherence (LO input/output)
- N5182B-503 - 022 - 512 Msa playback memory
- N5182B-503 - 023 - 1024 Msa playback memory
- N5182B-503 - 303 - Multifunction generator
- N5182B-503 - 320 - Pulse train generator (requires Option UNW)
- N5182B-503 - 403 - Additive white Gaussian noise (AWGN)
- N5182B-503 - 430 - Multitone and two-tone
- N5182B-503 - 431 - Custom modulation (Arb and real-time mode)
- N5182B-503 - 432 - Real-time phase noise impairments
- N5182B-503 - 656 - Baseband generator with 80 MHz RF bandwidth (100 Sa/s to 100 MSa/s)
- N5182B-503 - 657 - Wideband baseband generator upgrade to 160 MHz RF bandwidth (100 Sa/s to 200 MSa/s)
- N5182B-503 - 660 - Real-time baseband generator
- N5182B-503 - UN7 - Bit error rate (BER) analyzer
- N5182B-503 - UNT - AM, FM, and phase modulation
- N5182B-503 - UNV - Improved ACPR performance
- N5182B-503 - UNW - Narrow pulse modulation with internal pulse generator
- N5182B-503 - UNX - Ultra-low phase noise performance
- N5182B-503 - UNY - Ultra-low phase noise with signal-to-noise optimization mode
- N5182B-503 - UNZ - Fast frequency and amplitude switching
The Keysight (Agilent) N5182B‑503 is a high-performance MXG X‑Series RF vector signal generator covering 9 kHz to 3 GHz with exceptional spectral purity and precise receiver-level accuracy. It features a wide 160 MHz vector bandwidth, massive 1,024 MSa AWG memory, ultra-low EVM of 0.4% (802.11ac/LTE), and impressive ACPR performance (–73 dBc for W‑CDMA), making it ideal for demanding wireless applications.
Equipped with standard LAN, GPIB, USB interfaces and SCPI control, this generator supports advanced test use cases through optional upgrades such as AWGN, digital modulation, and extended memory.
Testwall can supply the used Keysight (Agilent) N5182B‑503, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5182B‑503.
Options and configurations
- Frequency Range: 9 kHz to 3 GHz (Opt. 503)
- Output Power: -144 to +18 dBm (+24 dBm with Opt. 1EA) at 10 MHz to 3 GHz
- SSB Phase Noise: -134 dBc/Hz at 1 GHz, 20 kHz offset (typ.); -146 dBc/Hz (typ.) with Opt. UNX
- Modulation: AM, FM, ΦM (Opt. UNT), pulse (Opt. UNW), I/Q
- Switching Speed: ≤ 1.15 ms (typ.); ≤ 950 µs (typ.) with Opt. UNZ
- Modulation Bandwidth: 160 MHz RF (I+Q) internal with Opt. 656/657
