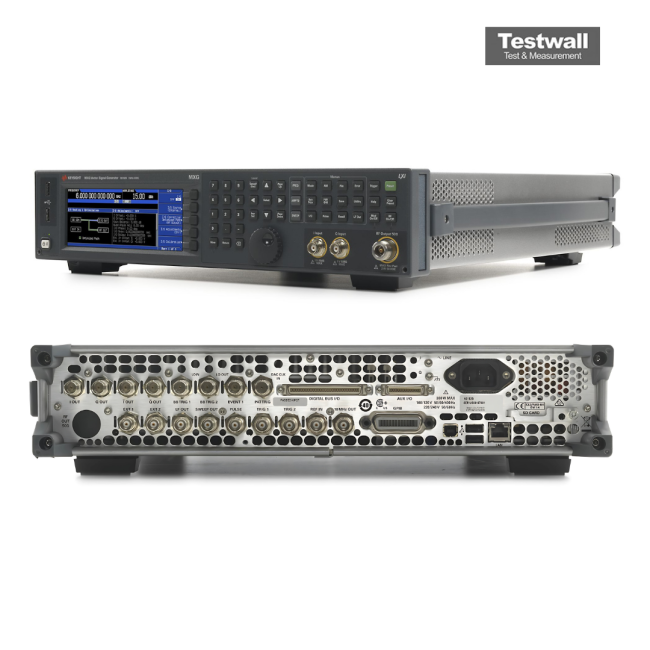

Keysight (Agilent) N5182B
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6 GHz |
| Frequency Resolution | 0.001 Hz |
| Sweep Modes | step sweep, list mode |
| Timebase Aging | < ±1 × 10⁻⁷ per year |
| RF Output Connector | Type-N female |
| Output Power | -144 to +18 dBm at 10 MHz to 3 GHz |
| SSB Phase Noise | -134 dBc/Hz at 1 GHz, 20 kHz offset (typ.) |
| Modulation | AM, FM, ΦM, pulse, I/Q (depending on configuration) |
| Level Accuracy | ±0.6 dB (spec.) at 5 MHz to 6 GHz, max. to -60 dBm |
| Harmonics | < -35 dBc (spec.) at 9 kHz to 3 GHz |
| Non-Harmonics | -75 to -87 dBc (spec.), >10 kHz offset |
| Switching Speed | ≤ 1.15 ms (typ.) |
| Interfaces | GPIB, LAN (LXI), USB |
| Dimensions | 426 × 88 × 489 mm |
| Weight | 15.9 kg |
Available configurations
| Model | Frequency range | Configuration |
| N5182B-503 | 9 kHz to 3 GHz | Vector signal generator |
| N5182B-506 | 9 kHz to 6 GHz | Vector signal generator |
Keysight (Agilent) N5182B-506 Options:
Options available for the Keysight (Agilent) MXG X-Series vector signal generator (N5182B). Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- N5182B - 656 - Internal baseband generator, 80 MHz RF bandwidth
- N5182B - 657 - Internal baseband generator, 160 MHz RF bandwidth
- N5182B - 403 - Calibrated AWGN
- N5182B - UNT - AM, FM and phase modulation
- N5182B - UNW - Narrow pulse modulation
- N5182B - 1EA - High output power
- N5182B - 1EQ - Low output power
- N5182B - UNZ - Fast switching
- N5182B - 1EM - RF output moved to rear panel
- N5182B - 006 - Instrument security
- N5182B - 1CM - Rack mount kit
- N5182B - 1CN - Front handle kit
- N5182B - 1CP - Rack mount kit with handles
The Keysight (Agilent) N5182B-506 is a 6 GHz vector signal generator offering –146 dBc/Hz phase noise at 1 GHz, 20 kHz offset. It features up to +27 dBm output, 160 MHz vector bandwidth, and 1024 MSa memory. Interfaces include LAN, USB, and GPIB, all LXI compliant.
Designed for flexible analog and vector modulation, the N5182B-506 supports diverse signal generation with excellent ACPR and EVM. Ideal for R&D and manufacturing.
Testwall can supply the used Keysight (Agilent) N5182B-506, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5182B-506.
Options and configurations
- Frequency Range: 9 kHz to 6 GHz (Opt. 506)
- Output Power: -144 to +18 dBm (+24 dBm with Opt. 1EA) at 10 MHz to 3 GHz
- SSB Phase Noise: -134 dBc/Hz at 1 GHz, 20 kHz offset (typ.); -146 dBc/Hz (typ.) with Opt. UNX
- Modulation: AM, FM, ΦM (Opt. UNT), pulse (Opt. UNW), I/Q
- Switching Speed: ≤ 1.15 ms (typ.); ≤ 950 µs (typ.) with Opt. UNZ
- Modulation Bandwidth: 160 MHz RF (I+Q) internal with Opt. 656/657
