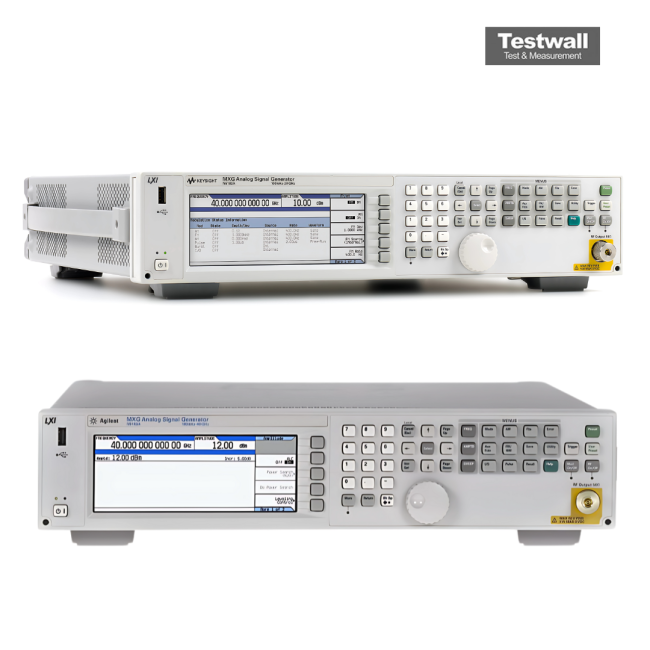

Keysight (Agilent) N5183A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 40 GHz |
| Frequency Resolution | 0.01 Hz |
| Harmonics | -54 dBc (spec.) at 2 to 20 GHz |
| Sweep Modes | step sweep, list mode |
| Timebase Aging | < ±1 × 10⁻⁶ per year |
| Output Power | -130 to +11 dBm (depending on configuration) |
| SSB Phase Noise | -95 dBc/Hz at 10 GHz, 20 kHz offset (spec.); -98 dBc/Hz (typ.) |
| Modulation | AM, FM, ΦM, pulse (depending on configuration) |
| Level Accuracy | ±0.6 dB to 2 GHz; ±0.9 dB at 2 to 20 GHz |
| Switching Speed | ≤ 5 ms |
| RF Output Connector | 3.5 mm male (depending on configuration) |
| Interfaces | GPIB, LAN (LXI), USB |
| Dimensions | 426 × 88 × 432 mm |
| Weight | 13.8 kg |
Available configurations
| Model | Frequency range | Configuration |
| N5183A-520 | 100 kHz to 20 GHz | Analog signal generator |
| N5183A-532 | 100 kHz to 31.8 GHz | Analog signal generator |
| N5183A-540 | 100 kHz to 40 GHz | Analog signal generator |
| N5183A-520 | 100 kHz to 20 GHz | Analog signal generator |
Keysight Technologies N5183A-540 Options:
- N5183A-540 - 540 - Frequency range from 100 kHz to 40 GHz
- N5183A-540 - UNZ - Fast frequency switching
- N5183A-540 - 1E1 - Step attenuator
- N5183A-540 - 1EA - High power
- N5183A-540 - UNU - Pulse modulation
- N5183A-540 - UNW - Narrow pulse modulation
- N5183A-540 - UNT - AM, FM, phase modulation
- N5183A-540 - 006 - Instrument security
- N5183A-540 - 1ER - Flexible reference input (1-50 MHz)
- N5183A-540 - 1EM - Move RF output to rear panel
- N5183A-540 - 1ED - Type N RF output connector
- N5183A-540 - 1CM - Rackmount kit
- N5183A-540 - 1CN - Front handle kit
- N5183A-540 - 1CP - Rackmount and front handle kit
- N5183A-540 - 1CR - Rack slide kit
- N5183A-540 - AXT - Transit case
The Keysight (Agilent) N5183A-540 RF Signal Generator offers exceptional performance with an ultra-broadband frequency range from 100 kHz to 40 GHz, supporting comprehensive Ka-band testing. Key specifications include phase noise of –107 dBc/Hz at 3 GHz and 20 kHz offset, power output from –20 dBm to +11 dBm (extendable to +18 dBm with option 1EA), and frequency switching speed of ≤ 5 ms with fast-switch UNZ. The unit also includes AM, FM, PM, and pulse modulation capabilities with versatile I/O (GPIB, USB, LAN) and LXI class C compatibility.
Engineered for flexibility in RF and microwave applications, the N5183A-540 is ideal for automated test environments requiring fast switching and broad frequency coverage. The modulation suite enhances signal complexity handling.
Testwall can supply the used Keysight (Agilent) N5183A-540, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5183A-540.
Options and configurations
- Frequency Range: 100 kHz to 40 GHz (Opt. 540)
- Output Power: -130 to +11 dBm (Opt. 520, with Opt. 1E1); +19 dBm at 3.2 to 20 GHz with Opt. 1EA
- Modulation: AM, FM, ΦM (Opt. UNT), pulse (Opt. UNU/UNW)
- Switching Speed: ≤ 5 ms; ≤ 1.15 ms with Opt. UNZ
- RF Output Connector: 3.5 mm male (Opt. 520), 2.4 mm male (Opt. 532/540); Type-N with Opt. 1ED
