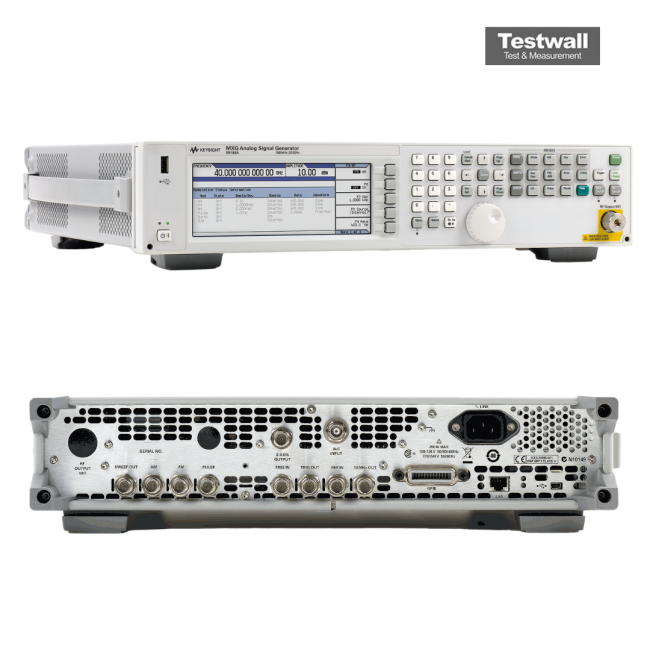

Keysight (Agilent) N5183A
| Attribute | Value |
|---|---|
| Frequency Resolution | 0.01 Hz |
| Harmonics | -54 dBc (spec.) at 2 to 20 GHz |
| Sweep Modes | step sweep, list mode |
| Timebase Aging | < ±1 × 10⁻⁶ per year |
| Interfaces | GPIB, LAN (LXI), USB |
| Frequency Range | 100 kHz to 20 GHz |
| Output Power | -130 to +11 dBm (depending on configuration) |
| SSB Phase Noise | -95 dBc/Hz at 10 GHz, 20 kHz offset (spec.); -98 dBc/Hz (typ.) |
| Modulation | AM, FM, ΦM, pulse (depending on configuration) |
| Level Accuracy | ±0.6 dB to 2 GHz; ±0.9 dB at 2 to 20 GHz |
| Switching Speed | ≤ 5 ms |
| RF Output Connector | 3.5 mm male (depending on configuration) |
| Dimensions | 426 × 88 × 432 mm |
| Weight | 13.8 kg |
Available configurations
| Model | Frequency range | Configuration |
| N5183A-520 | 100 kHz to 20 GHz | Analog signal generator |
| N5183A-532 | 100 kHz to 31.8 GHz | Analog signal generator |
| N5183A-540 | 100 kHz to 40 GHz | Analog signal generator |
| N5183A-520 | 100 kHz to 20 GHz | Analog signal generator |
Keysight (Agilent) N5183A Options:
Options available for the Keysight (Agilent) MXG microwave analog signal generator (N5183A). Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- N5183A - 520 - Frequency range 100 kHz to 20 GHz
- N5183A - UNT - AM, FM and phase modulation
- N5183A - UNU - Pulse modulation
- N5183A - UNW - Narrow pulse modulation
- N5183A - 1E1 - Step attenuator
- N5183A - 1EA - High output power
- N5183A - 1ER - Flexible reference input
- N5183A - 1EM - RF output moved to rear panel
- N5183A - 006 - Instrument security
- N5183A - 1CM - Rack mount kit
- N5183A - 1CN - Front handle kit
- N5183A - 1CP - Rack mount kit with handles
The Keysight (Agilent) N5183A MXG Analog Signal Generator covers frequencies from 100 kHz to 20 GHz with a compact 2RU form factor. It offers ≤ 900 µs frequency switching (typically 600 µs), high output power up to +18 dBm at 20 GHz, and excellent phase noise of -98 dBc/Hz at 20 kHz offset. This makes it ideal for antenna tests and high-power device evaluations.
Supporting AM, FM, and pulse modulation with <10 ns pulse rise/fall time and 20 ns pulse widths, the N5183A includes digital and step sweep functions. Connectivity options include USB 2.0, GPIB, and 100BaseT LAN.
Testwall can supply the used Keysight (Agilent) N5183A MXG Analog Signal Generator, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5183A MXG Analog Signal Generator.
Options and configurations
- Frequency Range: 100 kHz to 20 GHz (Opt. 520)
- Output Power: -130 to +11 dBm (Opt. 520, with Opt. 1E1); +19 dBm at 3.2 to 20 GHz with Opt. 1EA
- Modulation: AM, FM, ΦM (Opt. UNT), pulse (Opt. UNU/UNW)
- Switching Speed: ≤ 5 ms; ≤ 1.15 ms with Opt. UNZ
- RF Output Connector: 3.5 mm male (Opt. 520), 2.4 mm male (Opt. 532/540); Type-N with Opt. 1ED
