Keysight (Agilent) N5224A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 43.5 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 123 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Trace Noise | 0.004 dB RMS at 10 Hz IF bandwidth |
| Test Port Connector Type | 2.92 mm (K) male |
| Measurement Parameters | S-parameters, absolute power, receiver measurements |
| IF Bandwidth | 1 Hz to 15 MHz |
| Number of Points per Sweep | 1 to 100,001 |
| Interface/Connectivity | LAN (LXI Core), USB, GPIB |
Keysight Technologies N5224A Options:
- N5224A - 200 - 2-port base model with standard test set
- N5224A - 201 - To base model, adds front-panel jumpers and R1 receiver switch
- N5224A - 217 - To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended power range)
- N5224A - 219 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees
- N5224A - 400 - 4-port base model with standard test set
- N5224A - 401 - To base model, adds front-panel jumpers and R1 receiver switch
- N5224A - 417 - To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended power range)
- N5224A - 419 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power range), and bias-tees
| Model | N5224A |
|---|

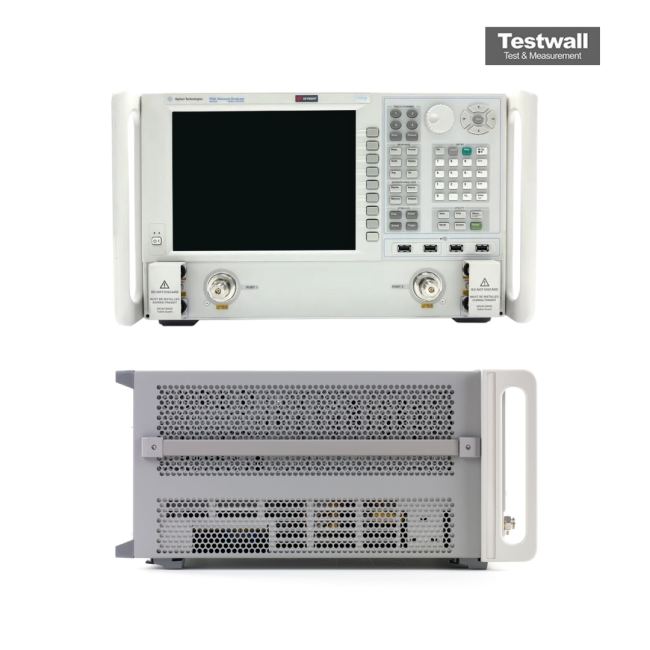

The Keysight (Agilent) N5224A Network Analyzer offers industry-leading performance for testing passive and active components with a frequency range from 10 MHz to 43.5 GHz, featuring a 127 dB system dynamic range and advanced measurement functions.
Ideal for filters, duplexers, amplifiers, and converters, the N5224A delivers high output power, low noise, and superior dynamic accuracy across two or four ports with dual sources.
Testwall can supply the used Keysight (Agilent) N5224A Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5224A Network Analyzer.
