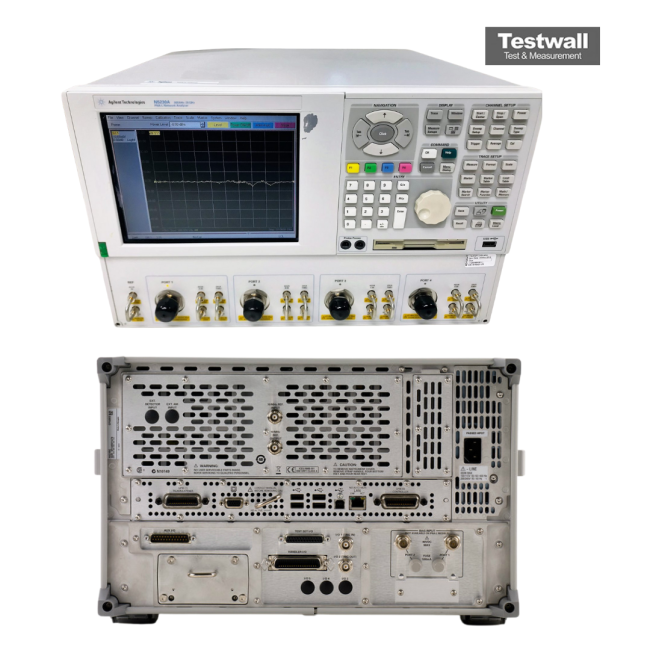

Keysight (Agilent) N5230A-246
4-port, 300 kHz to 20 GHz PNA-L Network Analyzer, Option 246
300 kHz to 20 GHz Frequency Range
4 Number of Ports
103 dB (spec.), 116 dB (typ.) Dynamic Range
Option 246: configurable test set (front-panel access loops), source step attenuators (extended power range), second internal source Configuration
2 Internal Sources
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 20 GHz |
| Number of Ports | 4 |
| Dynamic Range | 103 dB (spec.), 116 dB (typ.) |
| Configuration | Option 246: configurable test set (front-panel access loops), source step attenuators (extended power range), second internal source |
| Internal Sources | 2 |
| Impedance | 50 Ω |
| Connector Type | 3.5 mm (m) |
| IF Bandwidth | 1 Hz … 600 kHz |
| Number of Points | max. 16,001 |
| Trace Noise | 0.010 dB rms |
| Measurement Parameters | S-parameters, group delay |
| Display | 8.4" LCD, 640×480 |
| Interfaces | LAN, GPIB, USB, VGA, Handler I/O |
| Series | PNA-L |
Keysight Technologies N5230A-246 Options:
- N5230A-246 - 020 - Standard test set and standard power range, 300 kHz to 6 GHz
- N5230A-246 - 025 - Configurable test set and extended power range, 300 kHz to 6 GHz
- N5230A-246 - 120 - Standard test set and standard power range, 300 kHz to 13.5 GHz
- N5230A-246 - 125 - Configurable test set and extended power range, 300 kHz to 13.5 GHz
- N5230A-246 - 220 - Standard test set and standard power range, 10 MHz to 20 GHz
- N5230A-246 - 225 - Configurable test set and extended power range, 10 MHz to 20 GHz
- N5230A-246 - 420 - Standard test set and standard power range, 10 MHz to 40 GHz
- N5230A-246 - 425 - Configurable test set and extended power range, 10 MHz to 40 GHz
- N5230A-246 - 520 - Standard test set and standard power range, 10 MHz to 50 GHz
- N5230A-246 - 525 - Configurable test set and extended power range, 10 MHz to 50 GHz
- N5230A-246 - 080 - Configurable test set option (Option 080 enabled cycle time)
- N5230A-246 - H08 - Special configuration option (specifications not provided in datasheet)
- N5230A-246 - H11 - Special configuration option (specifications not provided in datasheet)
The Keysight (Agilent) N5230A-246 is a 4-port PNA-L vector network analyzer covering 300 kHz to 20 GHz. Option 246 configuration: configurable test set (front-panel access loops), source step attenuators (extended power range), second internal source.
Testwall can supply the used Keysight (Agilent) N5230A-246, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5230A-246.
