Keysight (Agilent)

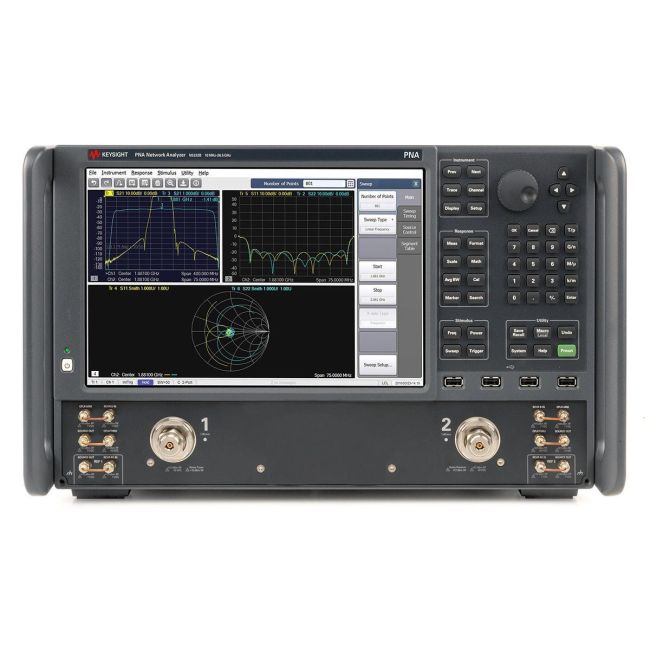

Keysight (Agilent) N5247B-224
2-port, 10 MHz to 67 GHz PNA-X Network Analyzer, Option 224
10 MHz to 67 GHz Frequency Range
2 Number of Ports
131 dB (spec.), 138 dB (typ.) Dynamic Range
max. +13 dBm Output Power Range
Option 224: source step attenuators (extended power range), receiver step attenuators, built-in bias tees, second internal source, internal combiner and switches Configuration
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 67 GHz |
| Number of Ports | 2 |
| Dynamic Range | 131 dB (spec.), 138 dB (typ.) |
| Output Power Range | max. +13 dBm |
| Configuration | Option 224: source step attenuators (extended power range), receiver step attenuators, built-in bias tees, second internal source, internal combiner and switches |
| Internal Sources | 2 |
| Impedance | 50 Ω |
| Connector Type | 1.85 mm (m) |
| IF Bandwidth | 1 Hz … 15 MHz |
| Number of Points | max. 100,003 |
| Measurement Parameters | S-parameters, noise figure (opt.), gain compression, IMD, phase noise (opt.), pulsed RF |
| Display | 12.1" LCD, 1280×800, touchscreen |
| Interfaces | LAN, 2× GPIB, USB, HiSLIP |
| Series | PNA-X |
Available configurations
| Model | Ports | Frequency range | Configuration |
| N5247B-201 | 2 | 10 MHz to 67 GHz | configurable test set |
| N5247B-219 | 2 | 10 MHz to 67 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
| N5247B-224 | 2 | 10 MHz to 67 GHz | source step attenuators, receiver step attenuators, built-in bias tees, second internal source, internal combiner and switches |
| N5247B-401 | 4 | 10 MHz to 67 GHz | configurable test set |
| N5247B-419 | 4 | 10 MHz to 67 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
| N5247B-423 | 4 | 10 MHz to 67 GHz | source step attenuators, receiver step attenuators, built-in bias tees, internal combiner and switches |
| N5247B-425 | 4 | 900 Hz to 67 GHz | 1.85 mm |
Keysight (Agilent) N5247B-224 Options:
- N5247B-224 - 029 - Adds hardware and firmware for high-accuracy noise figure measurements (requires Option 224 or 423)
- N5247B-224 - 200 - 2-port standard test set (includes six front-panel access loops) and power range
- N5247B-224 - 219 - Adds 2-port extended power range, source and receiver attenuators, and bias-tees (requires Option 200)
- N5247B-224 - 224 - Adds an internal second source, a combiner, and mechanical switches to the 2-port analyzer (requires Option 200, 219, and 080)
- N5247B-224 - 400 - 4-port standard test set (includes twelve front-panel access loops), power range, and an internal second source
- N5247B-224 - 419 - Adds 4-port extended power range, source and receiver attenuators, and bias-tees (requires Option 400)
- N5247B-224 - 423 - Adds an internal combiner, and mechanical switches to the 4-port analyzer (requires Option 400, 419, and 080)
The Keysight (Agilent) N5247B-224 is a 2-port PNA-X vector network analyzer covering 10 MHz to 67 GHz. Option 224 configuration: source step attenuators (extended power range), receiver step attenuators, built-in bias tees, second internal source, internal combiner and switches.
Testwall can supply the used Keysight (Agilent) N5247B-224, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5247B-224.
