Keysight (Agilent) N6702A
| Attribute | Value |
|---|---|
| Number of Output Slots | 4 slots for DC power modules |
| Maximum Output Power | 400 W total system output power |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Form Factor | 2U half-rack mainframe |
| Interface / Connectivity | GPIB, LAN (LXI Core 2011), and USB standard interfaces |
| Compatible Power Modules | Compatible with N6700 series DC power modules (N673x, N674x, N675x, N676x series) |
| Output Isolation | Outputs are isolated from each other and from chassis ground |
| Measurement Capability | Voltage and current measurement with data logging and digitizing functions |
| Protection Features | Overvoltage protection (OVP), overcurrent protection (OCP), and overtemperature protection (OTP) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Keysight Technologies N6702A Options:
- N6702A - 908 - Rack Mount Kit (Required for rack mounting. Standard rack mount hardware will not work.)
- N6702A - FLR - Filler Panel Kit (Required when you have less than 4 modules in a mainframe. Each filler panel kit contains 3 filler panels.)
- N6702A - 0L1 - Full documentation on CD-ROM and printed Users Guide
- N6702A - 0B0 - Full documentation on CD-ROM only; no printed documentation package
- N6702A - 900 - Power Cord, United Kingdom, P/N 8120-1351
- N6702A - 901 - Power Cord, Australia, P/N 8120-1369
- N6702A - 902 - Power Cord, Europe, P/N 8120-1689
- N6702A - 903 - Power Cord, USA, Canada, 120 V, P/N 8120-4383
- N6702A - 904 - Power Cord, USA, Canada, 240 V, P/N 8120-0698
- N6702A - 906 - Power Cord, Switzerland, P/N 8120-2104
- N6702A - 912 - Power Cord, Denmark, P/N 8120-2956
- N6702A - 917 - Power Cord, South Africa, India, P/N 8120-4211
- N6702A - 918 - Power Cord, Japan, P/N 8120-4753
- N6702A - 919 - Power Cord, Israel, P/N 8120-6800
- N6702A - 920 - Power Cord, Argentina, P/N 8120-6869
- N6702A - 921 - Power Cord, Chile, P/N 8120-6980
- N6702A - 922 - Power Cord, China, P/N 8120-8376
- N6702A - 927 - Power Cord, Thailand, P/N 8120-8871
| Model | N6702A |
|---|

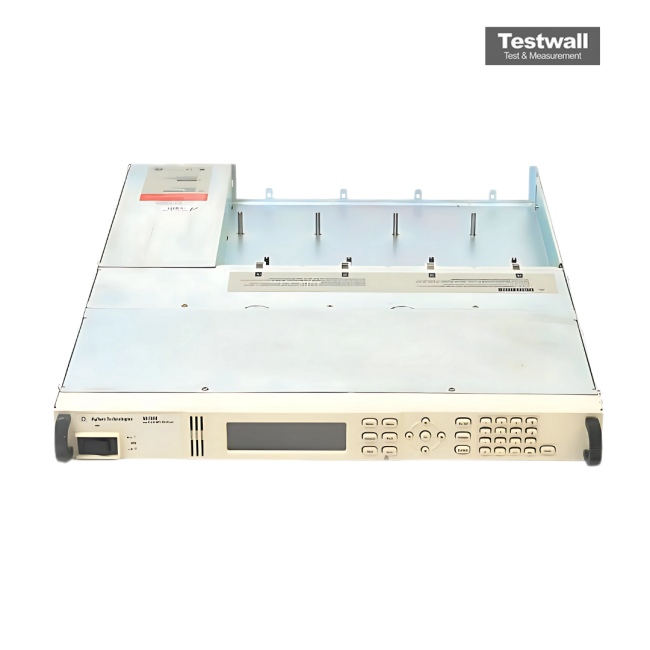

The Keysight (Agilent) N6702A is a 1200 W, 1U high, 4-slot modular power system mainframe supporting 1 to 4 N6700 series DC modules. With interfaces including GPIB, LAN, USB, and LXI Class C compliance, it allows flexible configurations from over 20 DC power modules ranging from 20 W to 300 W.
The system delivers 1200 W output with 200–240 VAC input or 600 W with 100–120 VAC. It features quick response protection and supports AC inputs from 86–264 VAC.
Testwall can supply the used Keysight (Agilent) N6702A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6702A.
