Megger MIT1525
| Attribute | Value |
|---|---|
| Test Voltage Range | 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V, 15000 V DC |
| Maximum Insulation Resistance Measurement | 35 TΩ |
| Insulation Resistance Measurement Range | 10 kΩ to 35 TΩ |
| Short Circuit Current | 3 mA maximum |
| Voltage Measurement (AC/DC) | 30 V to 660 V AC/DC |
| Test Functions | Spot reading, Dielectric Absorption Ratio (DAR), Polarization Index (PI), Step Voltage, Dielectric Discharge (DD) |
| Display | Backlit dual LCD display with analog arc and digital readout |
| Power Source | Internal rechargeable NiMH battery pack or external AC adapter |
| Safety Rating | CAT III 600 V, CAT II 1000 V (IEC 61010-1) |
| Operating Temperature Range | -20°C to +55°C (-4°F to +131°F) |
| Model | MIT1525 |
|---|

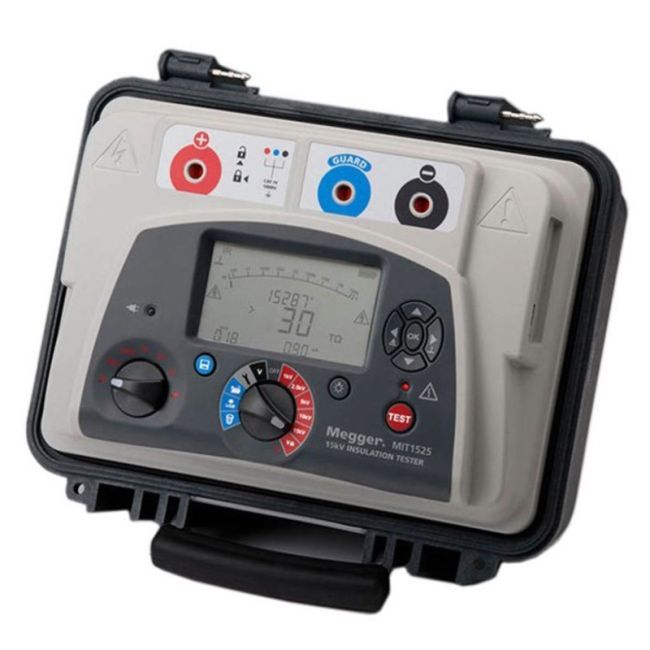

The Megger MIT1525 Diagnostic DC Insulation Resistance Tester delivers insulation testing up to 15 kV with resistance up to 30 TΩ and accuracy of ±5% from 1 MΩ to 3 TΩ. It features advanced test modes including PI, DAR, and SV, safety ratings up to CAT IV 1000 V at 3000 m, IP65 protection when closed, and rapid charge batteries for extended use.
Applications include testing insulation effectiveness in cables, transformers, motors, generators, bushings, and circuit breakers. Its large backlit display, advanced memory, USB data transfer, and compatibility with Megger PowerDB software ensure efficient diagnostics and reporting.
Testwall can supply the used Megger MIT1525, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger MIT1525.
