Keysight (Agilent) N6753A
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 20 V |
| Output Current Range | 0 to 50 A |
| Output Power | 500 W |
| Voltage Programming Accuracy | 0.04% + 10 mV |
| Current Programming Accuracy | 0.1% + 50 mA |
| Voltage Readback Accuracy | 0.04% + 10 mV |
| Current Readback Accuracy | 0.1% + 50 mA |
| Form Factor | Plug-in DC Power Module for N6700 Modular Power System |
| Output Ripple and Noise (PARD) | 3 mV rms / 20 mV peak-to-peak (voltage); 30 mA rms (current) |
| Transient Response Time | Less than 1 ms to recover within 100 mV following a load change of up to 50% of full-scale output current |
Keysight (Agilent) N6753A Options:
- N6753A - 054 - High-speed Test Extensions (output list and digitized measurement capability)
- N6753A - 760 - Output disconnect/polarity reversal relays
- N6753A - 761 - Output and sense disconnect relays
| Model | N6753A |
|---|

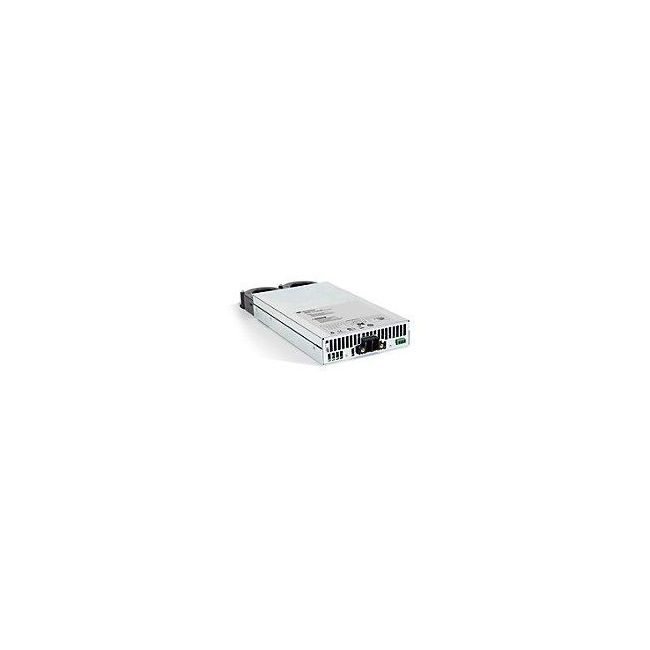

The Keysight (Agilent) N6753A is a 300 W autoranging DC power module delivering high accuracy and rapid programming speeds—up to 50 times faster than conventional power supplies. It supports output ratings of 20 V and 50 A with very low noise (1 mV rms, 5 mV peak-to-peak). Optional high-speed test extension adds digitizing capability for analyzing transient events. Interface options include GPIB, LAN, USB, and full LXI compliance.
Ideal for integration into ATE systems or benchtop setups using the N6700 or N6705 platforms, the N6753A supports over 20 module types ranging from 20 to 500 W for versatile testing applications.
Testwall can supply the used Keysight (Agilent) N6753A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6753A.
