Keysight (Agilent)
Keysight (Agilent) N6756A N6756A
High-Performance Autoranging DC Power Module, 60V, 17A, 500W
0 to 60 V Output Voltage Range
0 to 10 A Output Current Range
100 W maximum Output Power
0.04% + 12 mV Voltage Programming Accuracy
0.04% + 4 mA Current Programming Accuracy
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 60 V |
| Output Current Range | 0 to 10 A |
| Output Power | 100 W maximum |
| Voltage Programming Accuracy | 0.04% + 12 mV |
| Current Programming Accuracy | 0.04% + 4 mA |
| Voltage Readback Accuracy | 0.04% + 12 mV |
| Current Readback Accuracy | 0.04% + 4 mA |
| Output Ripple and Noise (Voltage) | 3 mV rms / 15 mV peak-to-peak |
| Form Factor / Compatibility | Single output DC power module compatible with Keysight N6700 series mainframes |
| Programming Interface | GPIB, LAN, USB (via N6700 mainframe) |
Keysight (Agilent) N6756A N6756A Options:
- N6756A - 760 - Output disconnect/polarity reversal relays
- N6756A - 761 - Output disconnect relays
- N6756A - 054 - High-speed Test Extensions (output list and digitized measurement capability)
| Model | N6756A |
|---|

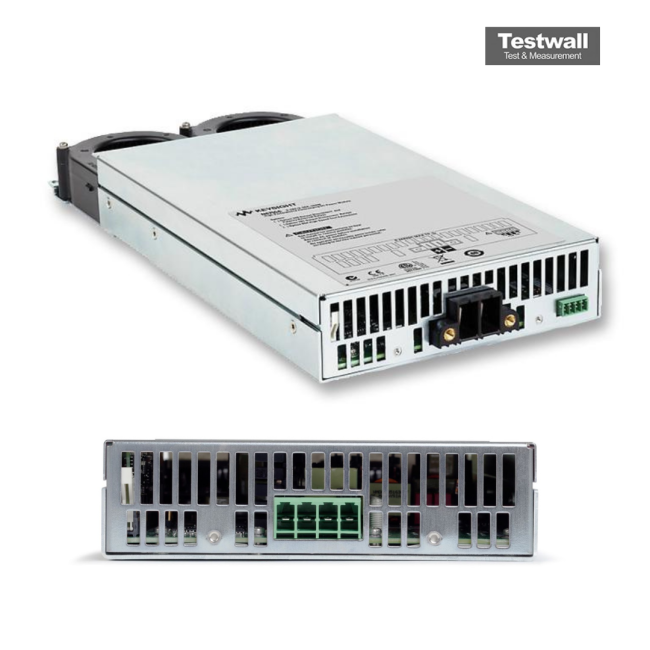

The Keysight (Agilent) N6756A is a 500 W autoranging DC power module offering 60 V and 17 A output with low noise and superior accuracy. It delivers programming speeds 10–50x faster than conventional supplies, with an optional digitizer for capturing high-speed transients.
Compatible with N6700 and N6705 systems, it features GPIB, LAN, USB, and LXI support. Ideal for ATE and bench testing environments with 20–500 W modular options.
Testwall can supply the used Keysight (Agilent) N6756A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6756A.
